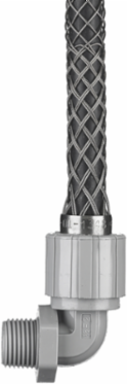

Hubbell Wiring Device-Kellems 074011350 Deluxe 90 Degree Male Cord Grip, 0.500-0.625 Inch, 3/4 Inch NPT
- MPN: 074011350
- UPC: 783585497884
- PPN: HBL-074011350
- UNSPSC: 39121431
CAD
$214.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Deluxe Cord Grips, 90 Degree Male, Non-Metallic, .500-.625", 3/4" with Mesh
Features
- Aluminum Fitting
- Stainless steel mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 2.250 in
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –40°F to +225°F (–40°C to +107°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- 0.5-0.625 in (1.27-1.59 mm)
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- 90 Degree Male Thread
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Cable Size
- .500"-.625" (1.27-1.59)
- Number Of Conductors
- Single
- Thread Size
- 3/4" NPT
- Description - Invoice
- 90 NM, DCG, .50-.62"; 3/4"W/MESH
- Harmonization Code
- 3926909989
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- Deluxe Cord Grips Series
- BOX SIZE
- 3.400x18.400x6.400 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585497884
- Case Weight
- 7.100 lb.
- Lowest Level UOM
- Each
Cable Diameter Range0.500 in-0.625 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 3
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -40 Deg F to 225 Deg F (-40 Deg C to 107 Deg C)
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Display Size3/4" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialNylon Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
