Hubbell Wiring Device-Kellems CG305NM Deluxe Straight Male Non-Metallic Cord Grip, 3/8 Inch, 0.250-0.312 Inch Cable Range
- MPN: CG305NM
- UPC: 783585335001
- PPN: HBL-CG305NM
- UNSPSC: 39121431
CAD
$170.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

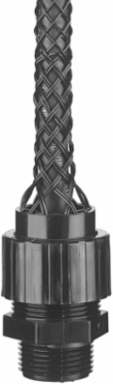

Kellems Wire Management, Deluxe Cord Grips, Straight Male Non- Metallic, .250-.312", 3/8" with Mesh
Features
- Nylon Fitting
- Non-metallic mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.500 in
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +225°F (–34°C to +107°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- 0.25-0.312 in (.63-.79 mm)
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Straight Male Thread
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- 3/8" NPT
- Style
- For Insulated Cables
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Material
- Nylon Fittings, Non-Metallic Mesh
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Cable Diameter Range0.250 in-0.312 in
Industry Standard(s)UL Listed
ApplicationStraight Male- Form 1
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextPulp & Paper Solutions
Cable Size.250"-.312" (.63-.79)
Number Of ConductorsSingle
Thread Size3/8" NPT
Description - InvoiceSTR MALE NM DCG, .250-.312"; 3/8" W/MESH
Harmonization Code3926909989
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
SeriesDeluxe Cord Grips Series
BOX SIZE3.700x7.600x3.700 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585335001
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
