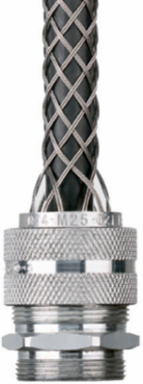

Hubbell Wiring Device-Kellems 074M251248 Deluxe Cord Grip M25 Thread, Straight Male, 0.750-0.875 Inch Cable
- MPN: 074M251248
- UPC: 783585327709
- PPN: HBL-074M251248
- UNSPSC: 39121431
CAD
$171.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Deluxe Cord Grips, Straight Metric Male, M25 Thread
Features
- Aluminum Fiting
- Stainless steel mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Country of Origin
- Puerto Rico
- Width
- 1.300 in
- Industry Standard(s)
- UL Listed
- Application
- Straight Male- Form 3
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
- General Literature Asset 1 Display Text
- Wire Management Solutions Brochure
- Display Size
- 25mm
- Style
- For Insulated Cables
- Description - Invoice
- DELUXE CORD GRIP M25 THREAD, 1248
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- PG and Metric Threaded
- BOX SIZE
- 3.048x13.048x4.298 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585327709
- Case - Total Units
- 20 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Cable Diameter Range0.750 in-0.875 in
Hub SizeM25
PerformanceEnvironmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Conductor Range0.75-0.875 in (1.90-2.22 mm)
Number of ConductorsSingle
StandardUL Listed
TypeStraight Metric Male Thread
Cable Size.750"-.875" (1.90-2.22)
Number Of ConductorsSingle
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialAluminum Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight21.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
