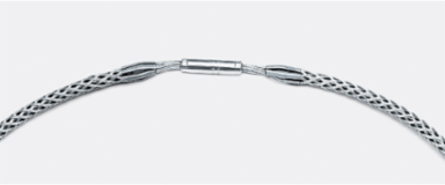

Hubbell Wiring Device-Kellems 03317001 Rotating Wire Rope Splice, 0.44-0.50 Inch, Galvanized Steel, 5000 lb Breaking Strength
- MPN: 03317001
- UPC: 783585317212
- PPN: HBL-03317001
- UNSPSC: 39121449
CAD
$1160.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, .44-.50"
Features
- Galvanized steel meshs contructed in triple, double and single weave
- Rotating barrel helps eliminate twist in old rope being transferred to new rope
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cable Diameter Range | 0.44 in-0.50 in |
| Industry Standard(s) | CSA Certified |
| Application | Wire Rope Splicing |
| Environmental Conditions | No Limitations |
| Special Features | Standard Product |
| Type | Rotating Wire Rope |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Display Size | Standard Sized Product |
| Style | Closed Mesh, Triple, Double, Single Weave |
| Description - Invoice | ROT WIRE ROPE SPLICE, .44-.50" |
| Harmonization Code | 7326200090 |
| MSDS Flag | No |
| Material - Mounting Hardware | On Cable Ends |
| Series | Wire Rope Grips Series |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 3359323114 |
| Approx Breaking Strength | 5,000 lb. |
|---|---|
| Width | 1.500 in |
| Performance | Mechanical - Approximate Breaking Strength - 5,000 (22,240);Mechanical - Approximate Strength of Grip per Foot - 5.33 (1.63);Mechanical - Barrel Dimensions - 3.00" (7.62) x .87" (2.21);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength) |
| Color | Metallic |
| Number of Conductors | 1 |
| Standard | CSA Certified |
| Weight | 1.4 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Cable Size | 0.44"-0.50" (1.11-1.27) |
| Number Of Conductors | 1 |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A480 |
| Material | Steel, Galvanized |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585317212 |
| Lowest Level UOM | Each |
