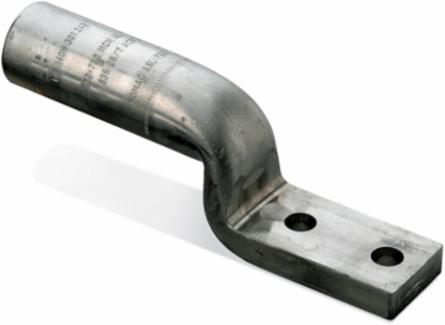

Blackburn ASL 500 NK Aluminum Compression Lug Kit, 8-1/4 Inch Long, Fits 477-500 kcmil
Blackburn ASL 500 NK Aluminum Compression Lug Kit, 8-1/4 Inch Long, Fits 477-500 kcmil
- MPN: ASL 500 NK
- UPC: 783786696598
- PPN: T-B-ASL 500 NK
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$206.71/ EA
Description
Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 500 N) and a Stacking Two-Hole NEMA Lug (ASL 500 N). Wire Sizes 477-500 kcmil, Compact 500-600 kcmil AL-CU, ACSR 397.5 (26/7) and 477 (18/1), installing dies 106A, 300, 317, 1 5/16, 15A.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole Stacking
- Special Functions
- Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.
- Surface Finishing
- Bare
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
Size8-1/4 inch long
StandardsANSI C119.4
Wire Size477 to 500 kcmil500 to 600 kcmil
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
