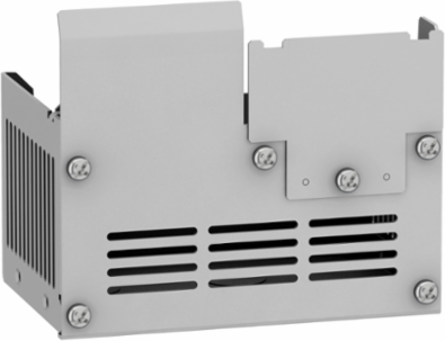

Schneider Electric VW3A95815 Altivar Machine ATV320 UL Type 1 Conformity Kit for Variable Speed Drive, Frame Size 3C
- MPN: VW3A95815
- PPN: SCH-VW3A95815
CAD
$75.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 3C (140mm/5.5in wide x 118mm/4.64in high, and 88mm/3.46in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320U30M3C and ATV320U40M3C drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Features
- This mechanical conversion kit transitions your drive from an open-panel IP20 rating to a fully compliant UL Type 1 enclosed configuration. By providing the mechanical barrier required by North American safety standards, it allows you to safely mount the variable speed drive outside of a main electrical enclosure, saving valuable cabinet space and significantly lowering structural installation costs.
- Specifically engineered to match the exact physical dimensions of Schneider Electric’s Frame Size 3C Altivar Machine ATV320 drives, this accessory delivers a seamless, gap-free fit. This tailor-made compatibility guarantees that all ventilation pathways line up perfectly with the drive's internal fans, maintaining optimal cooling airflow while preventing any localized thermal derating.
- Equipped with a rugged metal conduit box that attaches directly to the bottom of the drive, this kit provides a secure, enclosed path for incoming mains, motor cables, and low-voltage control wires. The built-in knockouts allow you to run standard electrical conduit straight into the unit, completely shielding bare conductors from accidental contact, physical tugging, and ambient debris.
- Designed with specialized baffling that respects the thermal profile of the ATV320 drive, the kit provides required physical protection without restricting vital heat dissipation. This intelligent ventilation design ensures your motor controller continues to operate safely at its maximum rated duty cycle, preventing expensive nuisance over-temperature trips and extending the lifespan of internal capacitors.
Documentation & Downloads
Specifications
Additional
- Mounting Location
- underside of drive
- Product Compatibility
- variable speed drive ATV320...C 3 kW, 200...240 V, three phase; variable speed drive ATV320...C 4 kW, 200...240 V, three phase
- Range Of Product
- Altivar
- Accessory / Separate Part Category
- mounting and fixing accessories
- Weight
- 0.550 kg (1.213 lb)
- Height
- 118 mm (4.64 in)
- Frame Size
- 3C
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
ComplianceUL Type 1
Materialmechanical device
Range CompatibilityAltivar Machine ATV320
Accessory / Separate Part Typekit for UL type 1 conformity
Width140 mm (5.5 in)
Depth88 mm (3.46 in)
Country of OriginIndonesia
China Rohs RegulationX
Rohs Exemption InformationYes
