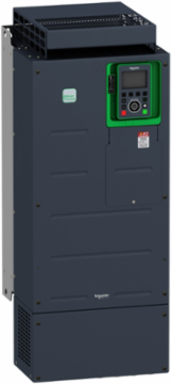

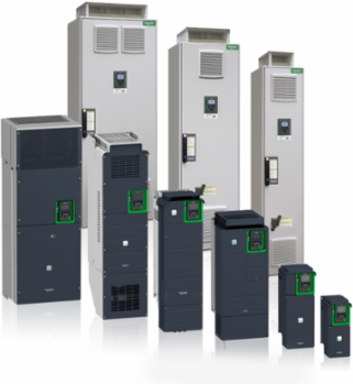

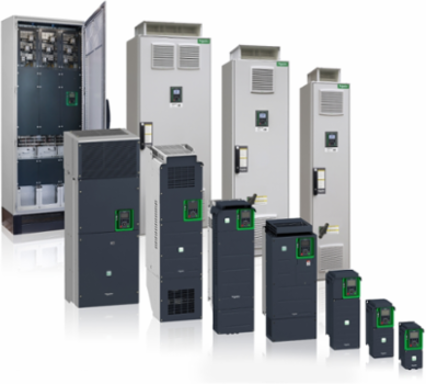

Schneider Electric ATV630D37S6 Variable Speed Drive 50hp 600V IP20 Altivar Process
- MPN: ATV630D37S6
- PPN: SCH-ATV630D37S6
- UNSPSC: 39122001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features three built-in RJ45 communication ports as standard, 1 Ethernet port, and two serial ports. It works at a rated supply voltage of 600V AC. This drive saves up to 30% energy when on standby due to the innovative ‘‘Stop and Go " operation without additional costs. It is suitable for motors with a power rating of up to 50hp for applications requiring slight overload (up to 120%). It is suitable for motors with a power rating of up to 40hp for applications requiring significant overload (up to 150%). It weighs 55kg, and its dimensions are 331mm wide, 822mm high, and 297mm deep. This drive is focused on fluids management processing and energy saving; it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas, and food and beverage applications. Accessories (fan kit, graphic display terminal, etc.) and options (I/O expansion modules, communication modules, EMC input filters, etc.) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted vertically on a wall (+/- 10 °). This new concept of drives meets the major needs of processes and utilities regarding equipment efficiency and total cost of ownership by supporting energy management, asset management, and the process's overall performance.
Features
- Embedded power measurement and energy dashboard
- Embedded process monitoring and control
- Asset monitoring and protection
- Drift monitoring
- Easy maintenance via a dynamic QR code
- Proven technical cooling and harmonics solutions
- Modular and compact design
- Easy grid integration
Documentation & Downloads
Specifications

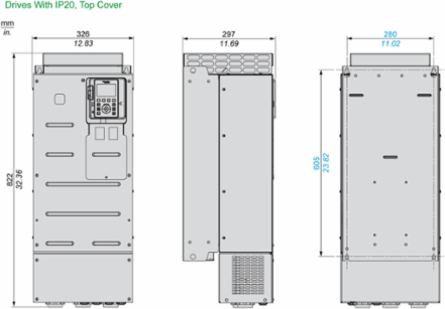

Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 297 mm |
| Weight | 55000 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus serial, Ethernet, Modbus TCP |
|---|
Complementary Attributes
| Maximum Thdi | <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12 |
|---|---|
| Maximum Horse Power Rating | 50 hp 600 V normal duty40 hp 600 V heavy duty |
| Maximum Output Frequency | 500 kHz |
| Maximum Switching Current | relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC |
| Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
| Us Rated Supply Voltage | 600 V600 V - 15...10 % |
| Maximum Acceleration Under Shock Load During Storage | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibrational Stress During Operation | 10 m/s² at 13...200 Hz |
| Maximum Acceleration Under Vibratory Load During Transport | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load During Storage | 1.5 mm at 2...13 Hz |
| Brake Chopper Integrated | false |
|---|---|
| Maximum Input Current Per Phase | 47.1 A |
| Maximum Output Voltage | 600.0 V |
| Maximum Transient Current | 57.2 A 60 s normal duty)62.3 A 60 s heavy duty) |
| Ue Rated Operational Voltage | 600 V 50 hp normal duty600 V 40 hp heavy duty |
| Maximum Acceleration Under Shock Impact During Operation | 150 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load During Transport | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibratory Load During Storage | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load During Operation | 1.5 mm at 2...13 Hz |
| Maximum Deflection Under Vibratory Load During Transport | 1.5 mm at 2...13 Hz |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Asynchronous Motor Control Profile | constant torque standard, optimized torque mode, variable torque standard |
| Electrical Connection | control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGline side screw terminal 25...50 mm² 4 AWG...1 AWG, motor screw terminal 25...50 mm² 4 AWG...1 AWG |
| Insulation Resistance | > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth |
| Local Signalling | 3 LEDs for local diagnostic3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage |
| Noise Level | 52 dB 86/188/EEC, 56 dB |
| Product Destination | asynchronous motors, synchronous motors |
| Sampling Duration | 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output |
| Synchronous Motor Control Profile | permanent magnet motor, synchronous reluctance motor |
| Certificate Agency | UL, CSA, TÜV |
| Environmental Class During Transport | class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 99.76984533343683, 100 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 412 kg CO2 eq., 412.1761718263419 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| 1 Phase Low Current Possible | false |
| Apparent Power | 48.9 kVA 600 V normal duty)42.2 kVA 600 V heavy duty) |
| Base Load Current At High Overload | 41.5 A |
| Braking To Standstill | by DC injection |
| Computer Port | true |
| Design Of Frequency Changer | U converter |
| Emc Filter | without EMC filter |
| Exchange Mode | half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| Housing Material | sheet steel |
| Line Current | 47.1 A 600 V normal duty)40.6 A 600 V heavy duty) |
| Method Of Access | slave Modbus TCP |
| Network Frequency | 50-60 Hz |
| Number Of Addresses | 1-247 Modbus serial |
| Number Of Hw Interfaces Serial Rs485 | 1 |
| Operating Element Present | true |
| Optical Interface Present | false |
| Permissible Temporary Current Boost | 1.1 x In 60 s normal duty)1.5 x In 60 s heavy duty) |
| Power Dissipation In W | natural convection 182 W 600 V 2.5 kHzforced convection 592 W 600 V 2.5 kHz |
| Power Loss Static Current Independent | 51.0 W |
| Product Or Component Type | variable speed drive |
| Prospective Line Isc | 70 kA |
| Range Of Product | Altivar Process ATV600 |
| Regulation Loop | adjustable PID regulator |
| Relative Symmetric Network Frequency Tolerance | 5 % |
| Safety Function | STO (safe torque off) SIL 3 |
| Software Version | v6.1 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | true |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 13 542 kg CO2 eq. |
| Type Of Cooling | forced convection |
| Updatability | Upgradeable through digital modules |
| Volume Of Cooling Air | 406 m3/h |
| With Safety Function Safe Programmable Logic | false |
| Database Version | 2023-02 |
| Height Nominal | 822 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Emc Limit Value Complied | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| With Safety Function Safe Direction Sdi | false |
| With Safety Function Safe Position Sp | false |
| With Safety Function Safe Stop 1 Ss1 | false |
| With Safety Function Safely Limited Position Slp | false |
| With Sft Fct Safe Stop 2 Ss | false |
| Packaging Weight In G | 16727.8 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 88 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Connector Type | RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Linearity Error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output |
| Motor Slip Compensation | adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load |
| Option Card | slot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink |
| Protection Type | safe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive |
| Supply | external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
| Transmission Rate | 10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| Environmental Class During Storage | class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1 |
| Carbon Footprint Of The Distribution Phase A4 | 10.71767222493084, 11 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 15 kg CO2 eq., 15.20874682093073 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 13 005 kg CO2 eq., 13004.550221340234 |
| Local Publishable Date | 2026-03-26 |
| Device Type | Variable speed drive - VSD Compacts |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1706016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1923 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | YES_SSI2Yes |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| 4 Quadrant Operation Possible | false |
| Application In Domestic And Commercial Area Permitted | false |
| Base Load Current At Low Overload | 52.0 A |
| Capacity Of Dc Link | 2500.0 µF |
| Data Format | 8 bits, configurable odd, even or no parity |
| Device Short Name | ATV630 |
| Enclosure Mounting | wall mounted |
| Frequency Resolution | display unit 0.1 Hzanalog input 0.012/50 Hz |
| Isolation | between power and control terminals |
| Marking | CE |
| Mounting Mode | wall mount |
| Nominal Switching Frequency | 2.5 kHz |
| Number Of Hw Interfaces Industrial Ethernet | 1 |
| Number Of Output Phases | 3 |
| Operating Position | vertical +/- 10 degree |
| Overvoltage Category | III |
| Phase | 3 phase |
| Power Loss Per Device Current Dependent | 722.0 W |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | process and utilities |
| Quantity Per Set | 1 |
| Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Relative Symmetric Mains Voltage Tolerance | 10 % |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Supporting Protocol For Bacnet | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | true |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Switching Frequency | 1...4.9 kHz adjustable2.5...4.9 kHz with derating factor |
| Transmission Frame | RTU |
| Type Of Polarization | no impedance |
| Vibration Resistance | 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Application In Industrial Area Permitted | true |
| Data Source | extrapolated product |
| Width Nominal | 331 mm |
| Supporting Protocol For Tcp/Ip | true |
| Customs Code | 8504404000 |
| Permitted Relative Humidity During Transport | class 2K5 according to EN 60721-3 |
| Supporting Protocol For Data Highway | false |
| With Safety Function Safe Brake Management Sbc/Sbt | false |
| With Safety Function Safe Operating Stop Sos | false |
| With Safety Function Safe Speed Monitor Ssm | false |
| With Safety Function Safe Torque Off Sto | true |
| With Safety Function Safely Limited Speed Sls | false |
| Warranty In Months | 18 |
| Functional Unit Description | To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 75 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 600V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase. |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 31728.72 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor) |
|---|---|
| Ambient Air Transport Temperature | -40-70 °C, -40-70 °C |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 13542.422657545874 |
| Environmental Disclosure | ENVPEP1706016EN |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % without condensation IEC 60068-2-3 |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Permitted Relative Humidity During Operation | class 3K5 according to EN 60721-3 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP20IP20IEC 61800-5-1, IP20IEC 60529 |
| Environmental Class During Operation | class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1706016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1706016EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Permitted Relative Humidity During Storage | class 1K5 according to EN 60721-3 |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | Altivar Process ATV600 |
| Product Or Component Type | variable speed drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|---|
| ETIM 10 | EC001857 |
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Analogue Output Type | software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA |
|---|---|
| Output Voltage | <= power supply voltage, <= power supply voltage |
| Analogue Output Number | 2 |
| Discrete Output Number | 0 |
| Nominal Output Power | 37.0 kW |
| Speed Drive Output Frequency | 0.1-500 Hz |
| Discrete Output Type | relay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA |
|---|---|
| Relay Output Type | configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles |
| Continuous Output Current | 52 A 2.5 kHz normal duty41.5 A 2.5 kHz heavy duty |
| Nominal Output Current | 52.0 A |
| Relay Output Number | 3 |
Input Attributes
| Analogue Input Type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits |
|---|---|
| Input Compatibility | DI1...DI6 discrete input level 1 PLC IEC 61131-2DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2 |
| Discrete Input Number | 8 |
| Number Of Input Phases | 3 |
| Discrete Input Logic | positive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds |
|---|---|
| Analogue Input Number | 3 |
| Discrete Input Type | DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
