Schneider Electric ATV320U30M3C Variable Speed Drive, 3kW, 200-240V, Compact Design

MPN: ATV320U30M3C
PPN: SCH-ATV320U30M3C
UNSPSC: 39122001

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$827.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

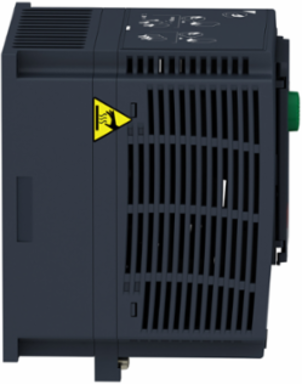

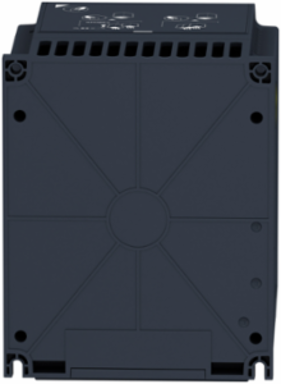

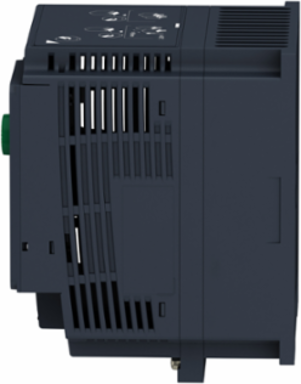

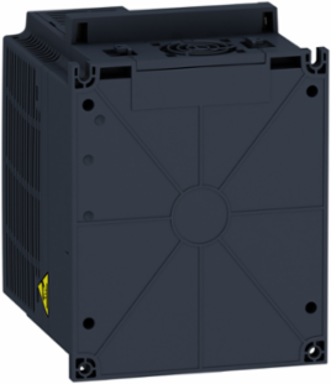

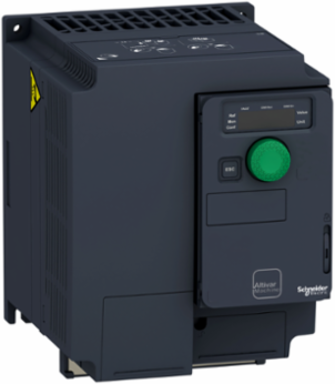

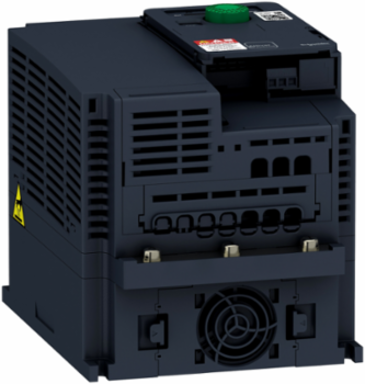

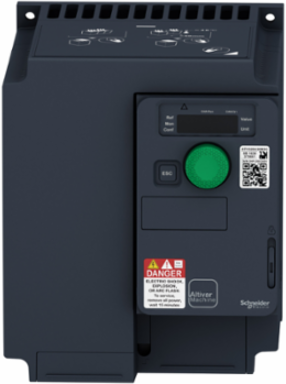

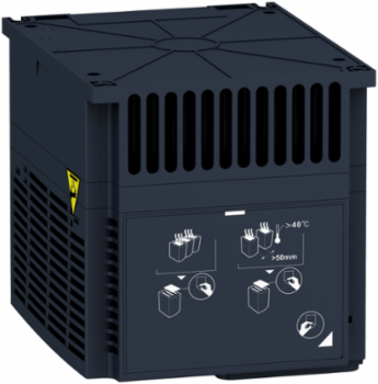

Variable Speed Drive, 3kW, 200-240V, Compact Design

Features

Safety function
Fanless
For simple and advanced machines
Advanced Motor control
Less downtime.
PLC integrated.
Synchronous and asynchronous motors comptatible

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

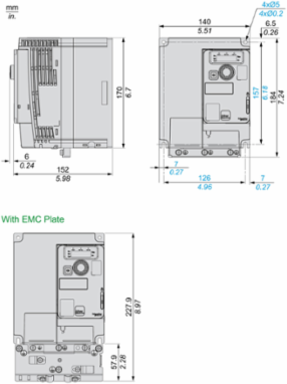

Depth	158.0 mm

Weight	2594 g

Communications & Management Attributes

Communication Port Protocol	Modbus serial, CANopen

Complementary Attributes

Maximum Switching Current	relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
Maximum Associated Fuse Rating	40 A
Maximum Output Frequency	0.599 kHz
Minimum Switching Current	relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport	150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load During Storage	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport	3.5 mm at 2...13 Hz

Brake Chopper Integrated	true
Maximum Input Current Per Phase	18.7 A
Maximum Output Voltage	240 V
Us Rated Supply Voltage	200...240 V200...240 V - 15...10 %
Maximum Acceleration Under Shock Load During Storage	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Storage	3.5 mm at 2...13 Hz

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Asynchronous Motor Control Profile	voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
Linearity Error	AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
Motor Slip Compensation	automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
Protection Type	input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
Speed Accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
Environmental Class During Storage	class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
Carbon Footprint Of The Distribution Phase A4	0.5054843954812838, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.5 kg CO2 eq., 0.5071900148782834
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 233 kg CO2 eq., 2233.249651483607
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
4 Quadrant Operation Possible	true
Application In Domestic And Commercial Area Permitted	false
Braking To Standstill	by DC injection
Computer Port	true
Emc Filter	without EMC filter
Format Of The Drive	compact
Line Current	18.7 A 200 V heavy duty)15.7 A 240 V heavy duty)
Motor Power Kw	3.0 kW heavy duty
Network Frequency	50-60 Hz
Nominal Switching Frequency	4 kHz
Number Of Hw Interfaces Other	1.0
Number Of Hw Interfaces Profinet	0.0
Number Of Hw Interfaces Serial Rs42	0.0
Number Of Hw Interfaces Serial Tty	0.0
Number Of Output Phases	3
Operating Position	vertical +/- 10 degree
Overvoltage Category	III
Power Dissipation In W	fan 105.0 W 200 V 4 kHz
Power Loss Static Current Independent	105.0 W
Product Or Component Type	variable speed drive
Prospective Line Isc	5 kA
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	5 %
Sampling Duration	2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
Supporting Protocol For Asi	false
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	true
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Synchronous Motor Control Profile	vector control without sensor
Transient Overtorque	170-200 % of nominal motor torque
Volume Of Cooling Air	16.4 m3/h
With Safety Function Safe Programmable Logic	false
Motor Power Kw 10 N Motor Power Kw	3.0 kW
Data Source	extrapolated product
Width Nominal	140 mm
Supporting Protocol For Tcp/Ip	true
Customs Code	8504404000
Emc Limit Value Complied	false
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	true
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Warranty In Months	18
Functional Unit Description	To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 200V to 240V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	5448.72

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Marking	CE, ATEX, UL, CSA, EAC, RCM
Option Card	communication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Time	logic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Certificate Agency	CE, ATEX, NOM, GOST, EAC, RCM, KC
Environmental Class During Transport	class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End Of Life Phase C1 To C4	3.4884667118237256, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	44 kg CO2 eq., 43.84631707704245
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Average Percentage Of Asi Certified Metals	99 %
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311036EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1650
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier	1
Function Option	Standard
Market Segmentation	Industrial
1 Phase Low Current Possible	false
Apparent Power	6.5 kVA 240 V heavy duty)
Base Load Current At High Overload	3.0 A
Capacity Of Dc Link	1890 µF
Design Of Frequency Changer	U converter
Encoder Protocol	RS 422
Housing Material	plastic
Method Of Access	slave CANopen
Mounting Mode	wall mount
Network Number Of Phases	3 phase
Number Of Hw Interfaces Industrial Ethernet	0.0
Number Of Hw Interfaces Parallel	0.0
Number Of Hw Interfaces Serial Rs23	0.0
Number Of Hw Interfaces Serial Rs485	1.0
Number Of Hw Interfaces Usb	0.0
Operating Element Present	true
Optical Interface Present	false
Phase	3 phase
Power Loss Per Device Current Dependent	105.0 W
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	complex machines
Range Of Product	Altivar Machine ATV320
Relative Symmetric Mains Voltage Tolerance	10 %
Returnability	Yes
Software Version	v6.1
Supporting Protocol For Bacnet	false
Supporting Protocol For Devicenet	true
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	true
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Switching Frequency	2...16 kHz adjustable4...16 kHz with derating factor
Total Lifecycle Carbon Footprint	2 282 kg CO2 eq.
Updatability	Upgradeable through digital modules
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted	true
Database Version	2023-02
Height Nominal	184.0 mm
Supporting Protocol For Ethernet/Ip	true
Nbr. Of Units In Pkg.	1
Percentage Bio Based Plastic	18 %
Permitted Relative Humidity During Transport	class 2K5 according to EN 60721-3
Supporting Protocol For Data Highway	false
With Safety Function Safe Brake Management Sbc/Sbt	false
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	true
With Safety Function Safely Limited Speed Sls	true
Average Percentage Of Bio Based Plastic Content	18 %
Packaging Weight In G	492.3
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	68

Environment Attributes Main

Ambient Air Temperature For Operation	-10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
Ambient Air Transport Temperature	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	2281.5971096828325
Environmental Disclosure	ENVPEP2311036EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3-EN-2023 06 06
Permitted Relative Humidity During Operation	class 3K5 according to EN 60721-3

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2311036EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 1
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2311036EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Permitted Relative Humidity During Storage	class 1K5 according to EN 60721-3

General Attributes

Phase	3 phase
Range Of Product	Altivar Machine ATV320

Product Or Component Type	variable speed drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Discrete Output Type	open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
Analogue Output Number	1
Discrete Output Number	3
Nominal Output Power	3.0 kW

Relay Output Type	configurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Type	software-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Nominal Output Current	13.7 A

Input Attributes

Analogue Input Type	AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Discrete Input Type	STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Discrete Input Number	7
