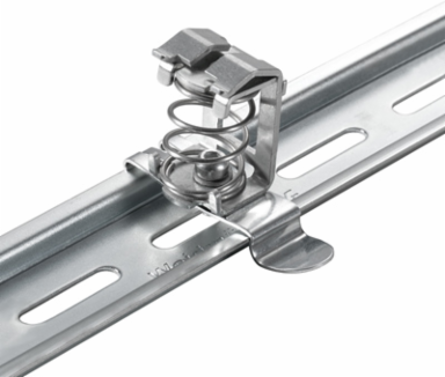

Weidmuller 1252490000 KLBUE 15-32 FM4
- MPN: 1252490000
- PPN: WDM-1252490000
CAD
$23.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Clamping yoke
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 34.5 mm
- Height
- 50.5 mm
- Depth
- 64 mm
- Net weight
- 82.4 g
Width (inches)1.358 inch
Height (inches)1.988 inch
Depth (inches)2.52 inch
Additional Technical Data
- Explosion-tested version
- No
Material Data
- Colour
- silver
Classifications
- ETIM 6.0
- EC002020
- eClass 9.0
- 27-14-11-50
- eClass 10.0
- 27-14-11-50
ETIM 7.0EC002020
eClass 9.127-14-11-50
System Specifications
- Rail
- TS 35
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Conductors For Clamping (Rated Connection)
- Cable diameter, max.
- 32 mm
Cable diameter, min.15 mm
