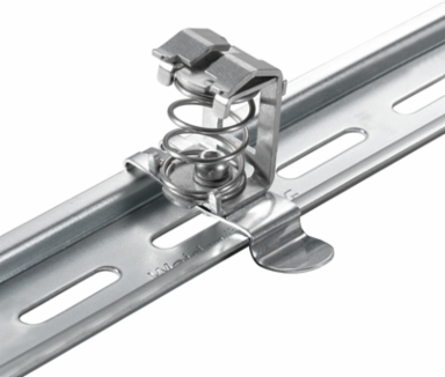

Weidmuller 1252530000 KLBUE 3-8 FM4
- MPN: 1252530000
- PPN: WDM-1252530000
CAD
$14.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 14.5 mm |
|---|---|
| Height | 50 mm |
| Depth | 26 mm |
| Net weight | 17.2 g |
| Width (inches) | 0.571 inch |
|---|---|
| Height (inches) | 1.969 inch |
| Depth (inches) | 1.024 inch |
Additional Technical Data
| Explosion-tested version | No |
|---|
Material Data
| Colour | silver |
|---|
Classifications
| ETIM 6.0 | EC002020 |
|---|---|
| eClass 9.0 | 27-14-11-50 |
| eClass 10.0 | 27-14-11-50 |
| ETIM 7.0 | EC002020 |
|---|---|
| eClass 9.1 | 27-14-11-50 |
System Specifications
| Rail | TS 35 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Conductors For Clamping (Rated Connection)
| Cable diameter, max. | 8 mm |
|---|
| Cable diameter, min. | 3 mm |
|---|
