Weidmuller 9529240000 KLIPPON K6 RAL7001
Weidmuller 9529240000 KLIPPON K6 RAL7001
- MPN: 9529240000
- PPN: WDM-9529240000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$174.24/ EA
Description

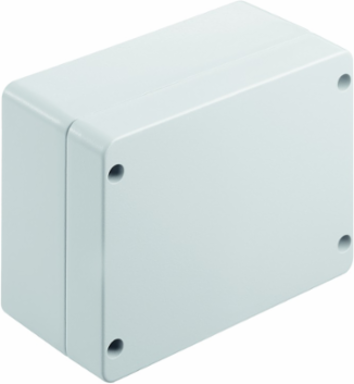

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
Specifications
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

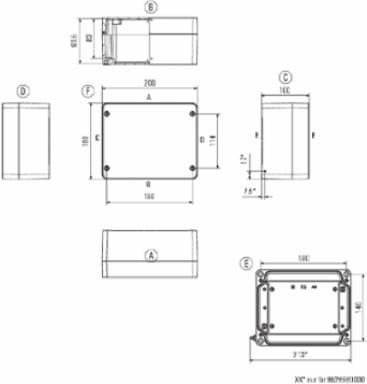

Dimensions And Weights
- Width
- 200 mm
- Height
- 160 mm
- Depth
- 100 mm
- Mounting dimension - width
- 180 mm
- Weight
- 2,000 g
Width (inches)7.874 inch
Height (inches)6.299 inch
Depth (inches)3.937 inch
Mounting dimension - height140 mm
Net weight1,820 g
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x12
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x25
- WDU 6 / ZDU 6
- 1x15
WDU 16 / ZDU 161x10
WDU 4 / ZDU 41x21
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
UNSPSC31-26-15-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Cable Glands, Top/Bottom
- M12
- 17 ???New14???
- M20
- 7 ???New14???
- M32
- 3
M1612 ???New14???
M254
M402
Cable Glands, Right
- M12
- 6
- M20
- 3
- M32
- 2
M166
M252
M401
Cable Glands, Left
- M12
- 6
- M20
- 3
- M32
- 2
M166
M252
M401
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material thickness of cover
- 3 mm
- Torque for lid screws
- 2.5 Nm
- Seal material
- Chloroprene
- Operating temperature, min.
- -40 °C
- Impact resistance
- 10.00 J
- Note: protection class
- IP68 (t=72h, h=1m)
- Lid attachment
- M5 torx stainless steel screws with slot
Material thickness4.6 mm
Material thickness of enclosure4.6 mm
MaterialAluminium AlSi12
Surface finishPowder-coated, textured
Operating temperature, max.80 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 6 mm
Integral fixingThreaded holes M5
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
Downloads
