Weidmuller 9529220000 KLIPPON K51 RAL7001

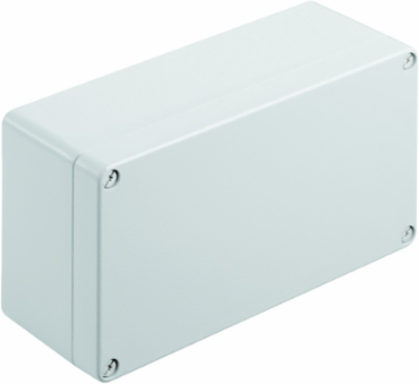

KLIPPON K51 RAL7001 - https://media.province-electric.com/web-weidmueller/2019q4/3031868a24cca6d7c1b5d12dabc2f389eb691b67-medium.png

MPN: 9529220000
PPN: WDM-9529220000

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$137.49/ EA

Qty:

Loading add to cart quantity...

Description

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 120 mm, Width: 220 mm, Depth: 81 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Specifications

Approvals

Approvals: CE, CULUS, DNV GL, EAC, MARITREG

UL File Number Search: E197061

ROHSConform

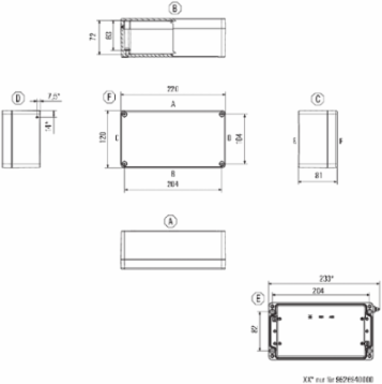

Dimensions And Weights

Width: 220 mm

Height: 120 mm

Depth: 81 mm

Mounting dimension - width: 204 mm

Weight: 1,280 g

Width (inches)8.661 inch

Height (inches)4.724 inch

Depth (inches)3.189 inch

Mounting dimension - height82 mm

Net weight1,399 g

Horizontal Assembly

WDU 10 / ZDU 10: 1x15

WDU 4 / ZDU 4: 1x26

WDU 2,5 / ZDU 2,5 / IDU 2,51x31

WDU 6 / ZDU 61x19

Classifications

ETIM 6.0: EC000261

eClass 9.0: 27-18-01-01

eClass 10.0: 27-18-01-01

ETIM 7.0EC000261

eClass 9.127-18-92-90

UNSPSC31-26-15-02

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Cable Glands, Top/Bottom

M12: 23

M20: 8

M32: 3

M1614 ???New14???

M255

M403

Cable Glands, Right

M12: 6

M20: 2

M32: 1

M163

M251

Cable Glands, Left

M12: 6

M20: 2

M32: 1

M163

M251

General Information

Areas of use: Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction

Material thickness of cover: 4 mm

Torque for lid screws: 2.5 Nm

Seal material: Chloroprene

Operating temperature, min.: -40 °C

Impact resistance: 10.00 J

Note: protection class: IP68 (t=72h, h=1m)

Lid attachment: M6 torx stainless steel screws with slot

Material thickness4.5 mm

Material thickness of enclosure4.5 mm

MaterialAluminium AlSi12

Surface finishPowder-coated, textured

Operating temperature, max.80 °C

Protection degreeIP66, IP67, IP68

Enclosure attachmentHoles 6 mm

Integral fixingThreaded holes M5

Certificate Numbers Enclosure

Certificate No. (GERMLLOYD): TAE00002SM

Certificate no. (cULus): E197061

Certificate No. (MARITREG)14.40040.250
