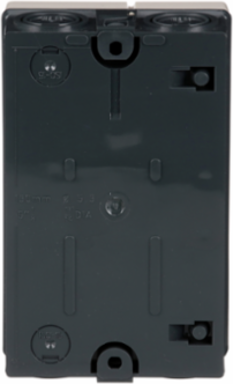

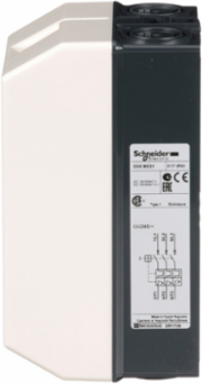

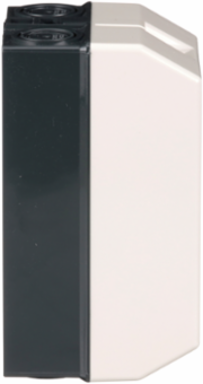

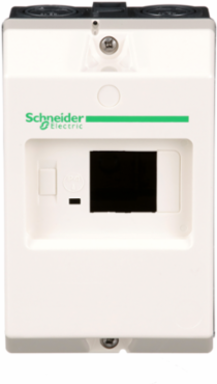

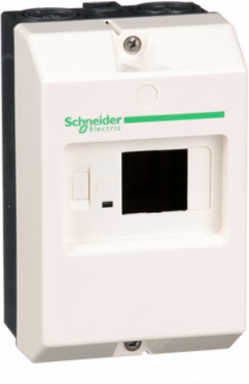

Schneider Electric GV2MC01 TeSys Empty Enclosure for GV2ME, IP41 Protection, 84 mm Depth

MPN: GV2MC01
PPN: SCH-GV2MC01

$53.77

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United Kingdom, Mexico

Depth	84 mm

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Auxiliary Mounting Location	left, right
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 2.450926256908761
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	9 kg CO2 eq., 9.374240146139641
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2107010
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GV2MC
Environmental Characteristic	standard environment
Product Or Component Type	enclosure
Range Of Product	TeSys GV2
Software Version	v6.1
Total Lifecycle Carbon Footprint	107 kg CO2 eq.
Pep Code	ENVPEP2107010EN
Pep Verification Date	2024-08-02
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2034; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	147 mm
Accessory / Separate Part Category	mounting accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908120

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.1258766698354385, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00469767590264559, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	95 kg CO2 eq., 95.1464883670669
Local Publishable Date	2026-07-07
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	GV2MC
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functions
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	232.14
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal	93 mm
Enclosure/Cubicle Description	surface mounting
Package Weight(Lbs)	277.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	107.10222911585338
Environmental Disclosure	ENVPEP2107010EN
Ip Degree Of Protection	IP41
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2107010EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2107010
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	GV2ME
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-08-02
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
