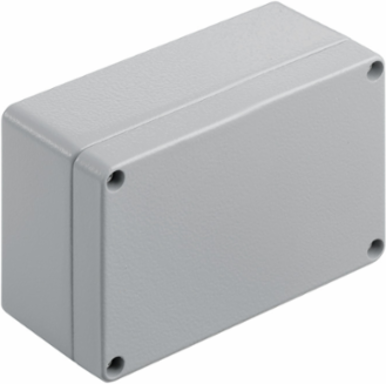

Weidmuller 9529150000 KLIPPON K21 RAL7001

KLIPPON K21 RAL7001 - https://media.province-electric.com/web-weidmueller/2019q4/7ad8f530471f80bb97ff9b10faf4665b591fa4fb-medium.png

MPN: 9529150000
PPN: WDM-9529150000

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$62.18/ EA

Qty:

Loading add to cart quantity...

Description

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 80 mm, Width: 125 mm, Depth: 57 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Specifications

Approvals

Approvals: CE, CULUS, DNV GL, EAC, MARITREG

UL File Number Search: E197061

ROHSConform

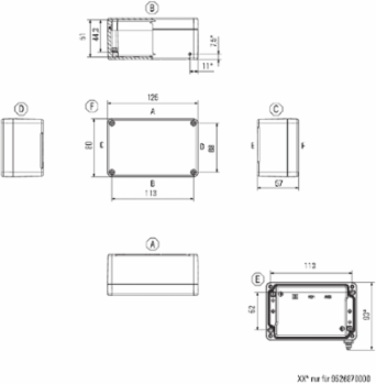

Dimensions And Weights

Width: 125 mm

Height: 80 mm

Depth: 57 mm

Mounting dimension - width: 113 mm

Weight: 400 g

Width (inches)4.921 inch

Height (inches)3.15 inch

Depth (inches)2.244 inch

Mounting dimension - height52 mm

Net weight458 g

Horizontal Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5: 1x15

WDU 4 / ZDU 41x12

Classifications

ETIM 6.0: EC000261

eClass 9.0: 27-18-01-01

eClass 10.0: 27-18-01-01

ETIM 7.0EC000261

eClass 9.127-18-92-90

UNSPSC31-26-15-02

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Cable Glands, Top/Bottom

M12: 6

M20: 3

M164

M252

Cable Glands, Right

M12: 2

M20: 1

M162

Cable Glands, Left

M12: 2

M20: 1

M162

General Information

Areas of use: Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction

Material thickness of cover: 2.5 mm

Torque for lid screws: 2.5 Nm

Seal material: Chloroprene

Operating temperature, min.: -40 °C

Impact resistance: 10.00 J

Note: protection class: IP68 (t=72h, h=1m)

Lid attachment: M4 torx stainless steel screws with slot

Material thickness4 mm

Material thickness of enclosure4 mm

MaterialAluminium AlSi12

Surface finishPowder-coated, textured

Operating temperature, max.80 °C

Protection degreeIP66, IP67, IP68

Enclosure attachmentHoles 4 mm

Integral fixingThreaded holes M4

Certificate Numbers Enclosure

Certificate No. (GERMLLOYD): TAE00002SM

Certificate no. (cULus): E197061

Certificate No. (MARITREG)14.40040.250
