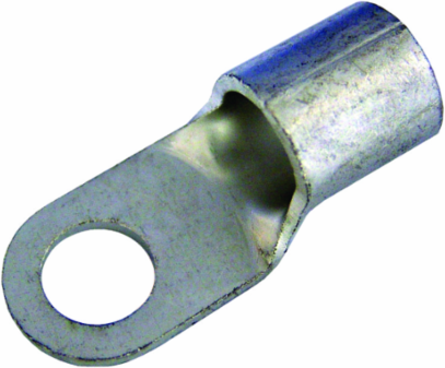

Weidmuller 1493820000 KQN-M3/-2,5
- MPN: 1493820000
- PPN: WDM-1493820000
CAD
$0.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,1.5 mm² - 2.5 mm²
Documentation & Downloads
Specifications
Connectors
| Conductor cross-section, max. | 2.5 mm² |
|---|---|
| Connection length (I) | 11 mm |
| Inside diameter of flange (d2) | 3.2 mm |
| Insulation | not available |
| Shaft length (a) | 5 mm |
| Conductor cross-section, min. | 1.5 mm² |
|---|---|
| Hole | M 3 |
| Inside diameter of shaft (d1) | 2.3 mm |
| Outside diameter of shaft (d3) | 6 mm |
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-12 |
| eClass 10.0 | 27-40-02-12 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Weight | 0.07 g |
|---|
| Net weight | 0.659 g |
|---|
