Weidmuller 2556450000 TCC 6.4/51 BL
Weidmuller 2556450000 TCC 6.4/51 BL
- MPN: 2556450000
- PPN: WDM-2556450000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$35.34/ EA
Description

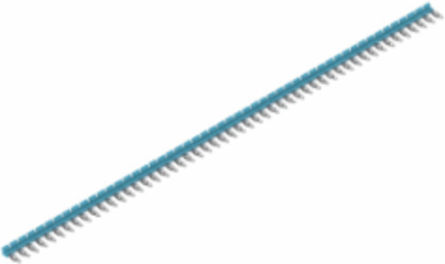

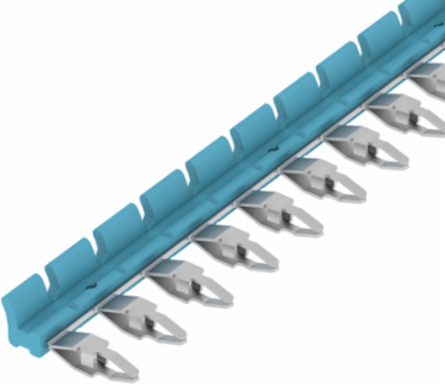

TERMSERIES, Cross-connector
Specifications
General Data
- Version
- can be cut to length
- UL 94 flammability rating
- V-0
Colourblue
Approvals
- Approvals
- EAC

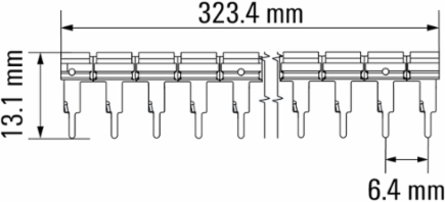

Dimensions And Weights
- Width
- 323.4 mm
- Height
- 13.1 mm
- Depth
- 4.8 mm
- Net weight
- 12 g
Width (inches)12.732 inch
Height (inches)0.516 inch
Depth (inches)0.189 inch
Connection Data
- Pitch in mm (P)
- 6.4 mm
Cross-Connection Data
- Rated voltage
- 300 V
- Insulation
- Yes
- Colour
- blue
- Number of poles
- 51
- Type of mounting
- Plugged
Rated current17.5 A
Touch-safe protectionYes
Number of cross-connected terminals32
Pitch in mm (P)6.4 mm
Versioncan be cut to length
Rated Data Ul
- Rated current (UL)
- 10 A
Classifications
- ETIM 6.0
- EC002586
- eClass 9.1
- 27-37-16-92
ETIM 7.0EC002586
eClass 10.027-37-16-92
Insulation Coordination
- Rated voltage
- 300 V
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -40 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Downloads
