Weidmuller 1196370000 KTB FS 553520 S4E2

MPN: 1196370000
PPN: WDM-1196370000

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

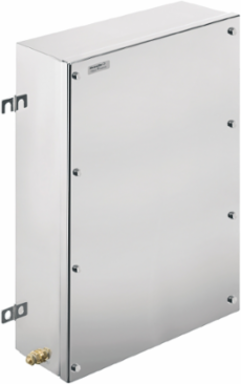

Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 550 mm, Width: 350 mm, Depth: 200 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4404 (316L), electropolished, silver

Documentation & Downloads

Specifications

Approvals

Approvals	CCOE, CE, CULUS, DNV GL, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX

UL File Number Search	E256877

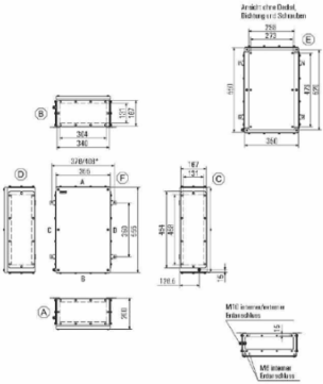

Dimensions And Weights

Width	350 mm
Height	550 mm
Depth	200 mm
Mounting dimension - width	376 mm
Net weight	13,660 g

Width (inches)	13.78 inch
Height (inches)	21.653 inch
Depth (inches)	7.874 inch
Mounting dimension - height	350 mm

Horizontal Assembly

WDU 10 / ZDU 10	3x26
WDU 2,5 / ZDU 2,5 / IDU 2,5	4x52
WDU 4 / ZDU 4	4x43

WDU 16 / ZDU 16	3x22
WDU 35 / ZDU 35	2x16
WDU 6 / ZDU 6	4x32

Housing Earth

Earth, enclosure, internal	Welded-on M6 stainless-steel earth stud in enclosure body and lid., Continuous M10 earth stud in body enclosure

Classifications

ETIM 6.0	EC002503
eClass 9.0	27-18-05-02
eClass 10.0	27-18-05-02

ETIM 7.0	EC002503
eClass 9.1	27-18-05-02

Product Information

Product information	Minimum order quantity (10 pieces)

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Vertical Assembly

WDU 10 / ZDU 10	2x46
WDU 2,5 / ZDU 2,5 / IDU 2,5	2x91
WDU 4 / ZDU 4	2x76

WDU 16 / ZDU 16	1x39
WDU 35 / ZDU 35	1x29
WDU 6 / ZDU 6	2x58

Cable Glands, Top/Bottom

M12	45 ???New14???
M20	20
M32	9
M50	3
M75	2

M16	30 ???New14???
M25	17 ???New14???
M40	7 ???New14???
M63	3

Cable Glands, Right

M12	70
M20	30 ???New14???
M32	14 ???New14???
M50	5
M75	3

M16	48 ???New14???
M25	26 ???New14???
M40	12 ???New14???
M63	4

Cable Glands, Left

M12	70
M20	30 ???New14???
M32	14 ???New14???
M50	5
M75	3

M16	48 ???New14???
M25	26 ???New14???
M40	12 ???New14???
M63	4

General Information

AF size 1	10 mm
Access opening: width	298 mm
Gland plates	Bottom, top
Material thickness	1.5 mm
Material thickness of flange	3 mm
Overall dimensions	572 x 401 x 208.5
Standards	DIN EN 62208 - Empty enclosure standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Material	Stainless steel 1.4404 (316L)
Surface finish	electropolished
Operating temperature, max.	135 °C
Protection degree	IP66, IP67
Enclosure attachment	4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing	4, 6 or 9 stud bolts M6 inner (female) thread

Access opening: height	520 mm
Areas of use	Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation advice	Terminal rail / mounting plate
Material thickness of cover	1.5 mm
Max. payload	77 kg
Position PE bolts	Page C
Torque for lid screws	2.5 Nm
Seal material	Silicone
Operating temperature, min.	-60 °C
Impact resistance	7 J ATEX version, 10 J version standard
Note: protection class	If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Lid attachment	M6 hex-head slotted screws SW10

Certificate Numbers Enclosure

Certificate no. assembled enclosure (ATEX)	IBExU14ATEX1050
Certificate no. assembled enclosure (IECEx)	IECEXIBE14.0013
Certificate no., assembled enclosure (EAC)	RU C-DE.ГБ08.B.01328
Certificate no. assembled enclosure (INMETRO)	IEx 17.0021
Certificate no. assembled enclosure (AEx)	E223792
Certificate no. assembled enclosure (NEPSI)	GYJ14.1309
Certificate no. (cULus)	E256877

Certificate no. empty enclosure (ATEX)	IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)	IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)	RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)	IEx 17.0020U
Certificate no. empty enclosure (NEPSI)	GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)	16-AV4BO-0245X
Certificate No. (CCOE)	CCOEP267536/2
