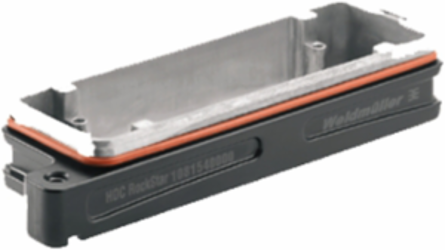

Weidmuller 1081540000 HDC IP68 24B AS
- MPN: 1081540000
- PPN: WDM-1081540000
CAD
$59.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 8, Protection degree: IP68, IP69K, Open base, Clamping yoke connection, Standard
Documentation & Downloads
Specifications
General Data
| EMC housings | Yes |
|---|---|
| Protection degree | IP68, IP69K |
| Housing main material | diecast aluminium |
|---|---|
| Surface finish | Powder coating |
Approvals
| Approvals | CE, DNV GL |
|---|
| ROHS | Conform |
|---|

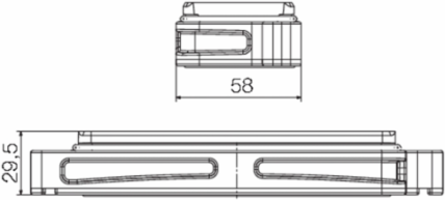

Dimensions And Weights
| Width | 58 mm |
|---|---|
| Height | 29.5 mm |
| Mounting dimension - width | 130 mm |
| Net weight | 196.845 g |
| Width (inches) | 2.283 inch |
|---|---|
| Height (inches) | 1.161 inch |
| Mounting dimension - height | 32 mm |
General Descriptions
| Size | 8 |
|---|
| Protection degree | IP68, IP69K |
|---|
Dimensions
| Height of housing B | 29.5 mm |
|---|---|
| Total length housing | 191 mm |
| Hole pitch length A2 | 130 mm |
|---|
Version
| Clamp version | Clamping yoke connection |
|---|---|
| Design of housing | Open base |
| Sealing | Silicone rubber |
| Suitable for ModuPlug | Yes |
| Type | Bulkhead (feed-through) |
| Design | Standard |
|---|---|
| Design of locking system | Clamping yoke connection |
| Size | 8 |
| Top part/bottom part/lid | lower part |
Material
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| UNSPSC | 30-21-18-01 |
Design
| Product family | HDC enclosures |
|---|---|
| Type | Bulkhead (feed-through) |
| Product type | Enclosures |
|---|
Temperatures
| Limit temperature | -50 °C ... 125 °C |
|---|
