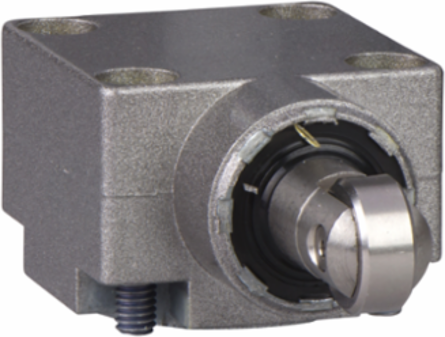

Telemecanique Sensors ZCKE655 Limit switch head, Limit switches XC Standard, ZCKE, side steel roller plunger vertical, +120 °C
- MPN: ZCKE655
- PPN: TES-ZCKE655
CAD
$105.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCKE, side steel roller plunger vertical, +120 °C
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | vertical approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | side roller plunger spring return metal with vertical roller) |
| Associated Body | ZCKJD39H29 || ZCKJ5 || ZCKJ5H7 || ZCKJ2 || ZCKJD39H7 || ZCKJD37H29 || ZCKJ1 || ZCKJ2H29 || ZCKJ8H7 || ZCKJD31 || ZCKJ6H7 || ZCKJ21H29 || ZCKJ9 || ZCKJ1H29 || ZCKJ5H29 || ZCKJ9H7 || ZCKJ7H29 || ZCKJ6 || ZCKJ11H7 || ZCKJ11 || ZCKJD31H29 || ZCKJ6H29 || ZCKJ2H7 || ZCKJ21 || ZCKJ7H7 || ZCKJ8H29 || ZCKJD35H29 || ZCKJ21H7 || ZCKJD37H7 || ZCKJ1H7 || ZCKJD31H7 || ZCKJ9H29 || ZCKJD35H7 || ZCKJ11H29 || ZCKJ8 || ZCKJD39 || ZCKJD35 || ZCKJD37 || ZCKJ7 |
| Device Short Name | ZCKE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKJ |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | metal |
| Positive Opening | with |
|---|---|
| Net Weight | 0.205 kg |
Environment
| Ambient Air Temperature For Operation | 10-120 °C |
|---|---|
| Environmental Characteristic | high temperature |
| Ambient Air Temperature For Storage | 10-120 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
