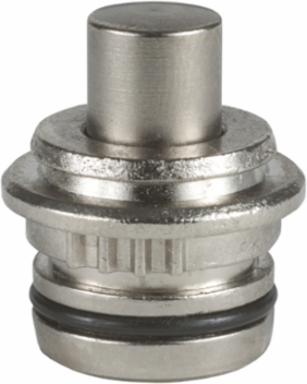

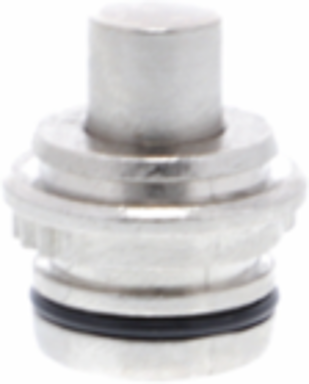

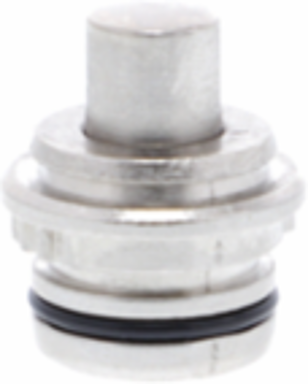

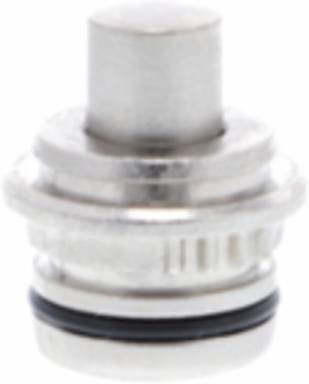

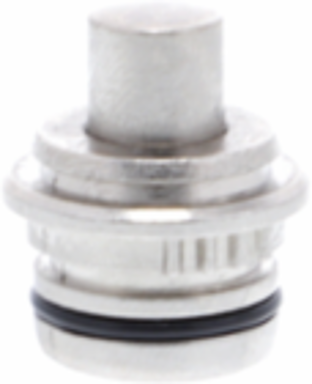

Telemecanique Sensors ZCE10 Limit switch head, Limit switches XC Standard, ZCE, metal end plunger
- MPN: ZCE10
- PPN: TES-ZCE10
- UNSPSC: 39122213
CAD
$17.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ZCE standard head has a metal end plunger. It can be matched with any body from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- vertical approach, 1 direction
- Movement Of Operating Head
- linear
- Type Of Operator
- end plunger spring return metal
- Associated Body
- ZCD37 || ZCMD37L1 || ZCP27 || ZCT27G11 || ZCMD21C12 || ZCD35 || ZCMD37L2 || ZCMD21L2 || ZCD31 || ZCMD25L5 || ZCT26N12 || ZCMD81L2 || ZCT28G11 || ZCD28 || ZCD27 || ZCT21N12 || ZCMD41L2 || ZCD26 || ZCMD37L5 || ZCMD21M12 || ZCT26P16 || ZCP29M12 || ZCMD41L1 || ZCD29M12 || ZCD21 || ZCMD29L1 || ZCMD29L5 || ZCT21G11 || ZCP21M12 || ZCMD61C12 || ZCMD81L5 || ZCMD39L5 || ZCT27N12 || ZCT25G11 || ZCMD29C12 || ZCMD21L08U78 || ZCMD25L2 || ZCD39 || ZCP26 || ZCP29 || ZCMD69C12 || ZCP39 || ZCP25 || ZCT25N12 || ZCMD25L1 || ZCT28N12 || ZCT27P16 || ZCP35 || ZCD25 || ZCMD39L1 || ZCD29 || ZCT26G11 || ZCD21M12 || ZCMD21L1 || ZCT21P16 || ZCMD41L5 || ZCP37 || ZCP28 || ZCMD21L08R12 || ZCP21 || ZCMD29L2 || ZCT25P16 || ZCMD81L1 || ZCMD39L2 || ZCMD61M12 || ZCP31 || ZCMD21L5 || ZCT28P16
- Device Short Name
- ZCE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCMD || XCKT || XCKD || XCKP
Head Typeplunger head
Complementary
- Positive Opening
- with
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
