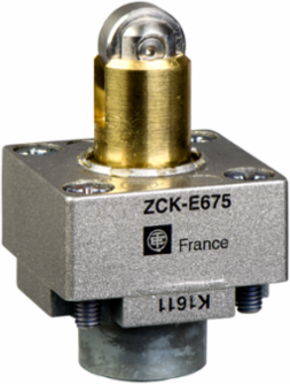

Telemecanique Sensors ZCKE675 Limit switch head, Limit switches XC Standard, ZCKE, steel roller plunger reinforced, +120 °C
- MPN: ZCKE675
- PPN: TES-ZCKE675
CAD
$93.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation of 30° cam with the positive opening operation. The spring return metal (reinforced) roller plunger supports the lateral approach in 2 directions. This linear switch head is made of metal. It weighs 0.155kg. It is suitable for the specific applications such as hoisting, mining, minerals and metals or belt conveying. It is compatible with the XCKJ limit switches. The associated bodies are ZCKJ4H7, ZCKJD37H7, ZCKJ4, ZCKJ6H7, ZCKJ11H7, ZCKJ41H29, ZCKJD37H29, ZCKJ21 and ZCKJ5H7. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | roller plunger spring return metal reinforced) |
| Associated Body | ZCKJ4H7 || ZCKJD37H7 || ZCKJ4 || ZCKJ6H7 || ZCKJ1 || ZCKJ2 || ZCKJ11 || ZCKJ4H29 || ZCKJD39H29 || ZCKJ6H29 || ZCKJ8 || ZCKJ21H7 || ZCKJ9H29 || ZCKJ41 || ZCKJ11H29 || ZCKJD31H29 || ZCKJ7 || ZCKJD37 || ZCKJD35H7 || ZCKJD35 || ZCKJ1H29 || ZCKJ1H7 || ZCKJD31H7 || ZCKJD39 || ZCKJ9H7 || ZCKJ2H29 || ZCKJ7H29 || ZCKJD39H7 || ZCKJ5H29 || ZCKJ2H7 || ZCKJ9 || ZCKJ7H7 || ZCKJD35H29 || ZCKJ8H7 || ZCKJ6 || ZCKJ5 || ZCKJ8H29 || ZCKJ41H7 || ZCKJD31 || ZCKJ11H7 || ZCKJ41H29 || ZCKJD37H29 || ZCKJ21 || ZCKJ5H7 || ZCKJ21H29 |
| Device Short Name | ZCKE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKJ |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | metal |
| Positive Opening | with |
|---|---|
| Net Weight | 0.155 kg |
Environment
| Ambient Air Temperature For Operation | 10-120 °C |
|---|---|
| Environmental Characteristic | high temperature |
| Ambient Air Temperature For Storage | 10-120 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
