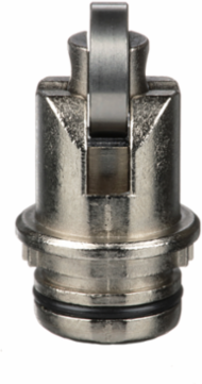

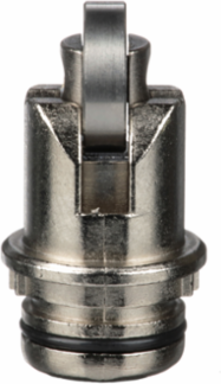

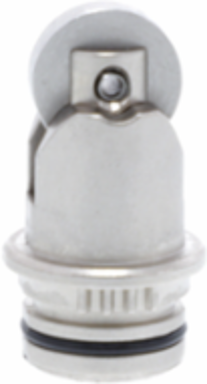

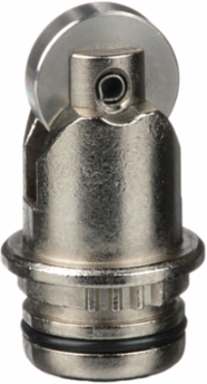

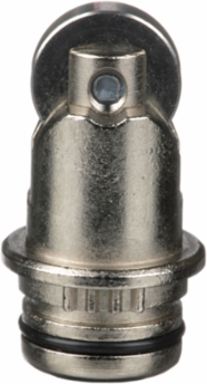

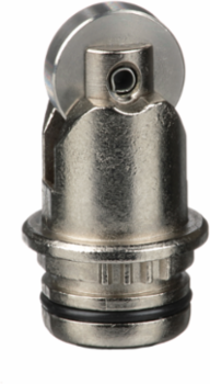

Telemecanique Sensors ZCE02 Osiswitch, limit switch head, ZCE, steel roller plunger

Osiswitch, limit switch head, ZCE, steel roller plunger
Osiswitch, limit switch head, ZCE, steel roller plunger
Osiswitch, limit switch head, ZCE, steel roller plunger
Osiswitch, limit switch head, ZCE, steel roller plunger
Osiswitch, limit switch head, ZCE, steel roller plunger
Osiswitch, limit switch head, ZCE, steel roller plunger
  • MPN: ZCE02
  • PPN: TES-ZCE02
  • UNSPSC: 39122213

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$32.70/ EA

Description

OsiSense XC compact modular metal limit switches meet the European standard (EN50047) for positive opening contacts, even in snap action versions which allow use in safety applications. XCKD range has a wide range of body types, different types of heads, and many limit switch arms that can be purchased as complete limit switches or as subcomponents that can be assemblied by the user to meet their specific requirement. OsiSense XC compact modular metal limit switches are often used in the packaging, materials handling, conveying, machining, food and beverage, service sector, and many more applications. These limit switches are UL Listed, CSA Certified, meet the appropriate IEC standards and are CCC.

Specifications

Movement of Operating Head
linear
Ambient Air Temperature for Operation
-25 to 70 °C
Type of Approach
lateral approach, 2 directions
Head Type
plunger head
Product Type
limit switch head
Associated Body
Multiple models (e.g. ZCMD41L1, ZCMD29L2, ZCD29M12, etc.)
Device Short Name
ZCE
Compliance
UL Listed, CSA Certified, IEC Standards, CCC
Mercury Free
Yes
Warranty
18 months
Positive Openingwith
Ambient Air Temperature for Storage-40 to 70 °C
Switch Actuationby 30° cam
Operator Typeroller plunger spring return metal
Product CompatibilityXCKD, XCKP, XCKT, XCMD
Series Namestandard format
Environmental Characteristicstandard environment
RoHSPro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer StatusGreen Premium product
