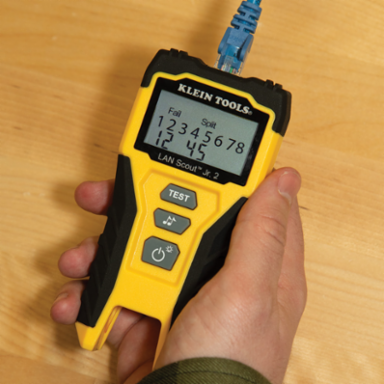

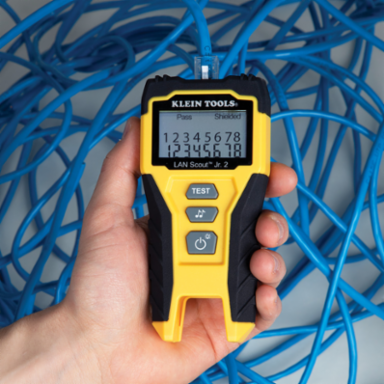

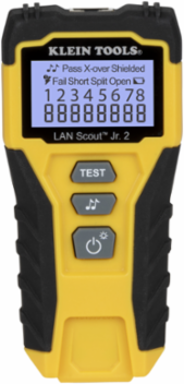

Klein Tools VDV526-200 LAN Scout Jr. 2 Cable Tester with LCD, RJ45, 0.2720 lbs, 5" Length
- MPN: VDV526-200
- UPC: 092644583544
- PPN: KLT-VDV526-200
- UNSPSC: 41113740
CAD
$90.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

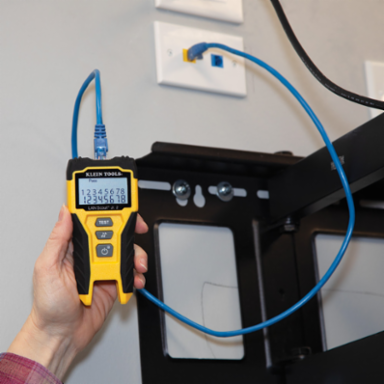

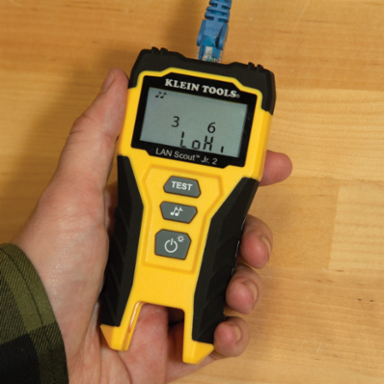

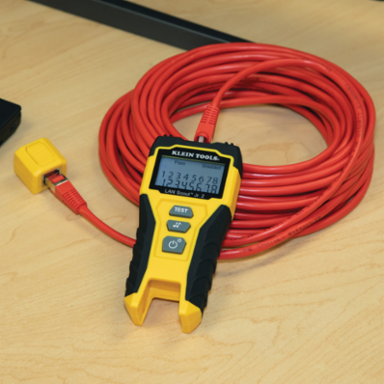

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.
Features

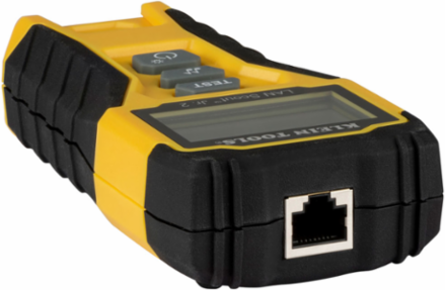

- Cable tester for data (RJ45) terminated cables and patch cords

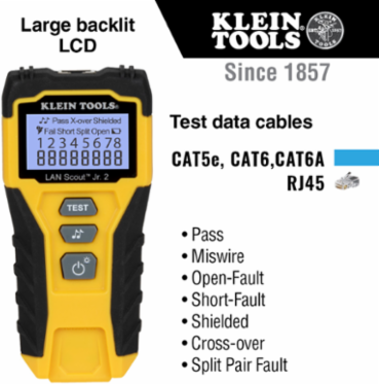

- Large backlit LCD for low lit areas displays pin to pin wiremap results

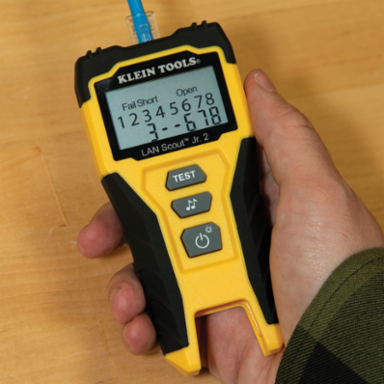

- Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
- Intuitive user interface features three buttons with simple, easy-to-identify test responses
- Tone on single wire, wire pair or all 8 conductor wires
- Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
- Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
- Soft, slip-resistant, rugged overmold for easy gripping and durability

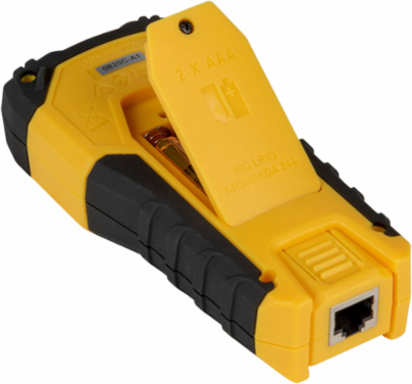

- Replaceable 2 x AAA batteries (included)

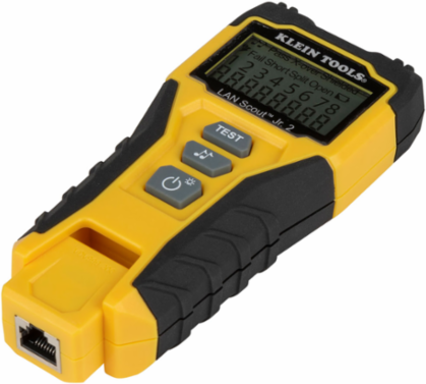

- Replaceable self-storing remote (included)
- Replacement remote available; sold separately (Cat. No. VDV999-200)
- Backlit LCD
Documentation & Downloads
Specifications
Key Specifications
- Multiple Style Tone Generator
- Yes
- Faults Detected
- Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
- Supported Remotes
- (1) Self-Storing
- Location ID
- No
- Connection & Adapter Types
- RJ45
- Type
- DATA, Voice, LAN
- Batteries
- 2 × AAA Alkaline
- Material
- Plastic and Stamped Metal
- Weight (oz)
- 4.3
- Overall Height (cm)
- 2.5
- Overall Length (cm)
- 12.7
- Overall Width (Inch)
- 2.5
- Height
- 1.0000 in
- Depth
- 5.2290 in
Test & Measure TypesData, RJ45
Drop Protection2' (0.6 m)
IncludedTester, Remote, 2 × AAA Alkaline Batteries
ApplicationCable Testing
Battery LifeActive - 80 hr; Standby - 3 yr.
DisplayLCD
Test-n-Map ID Remotes1
Cable TypeShielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
Overall Width (cm)6.4
Weight (g)122
Overall Length (Inch)5
Overall Height (Inch)1
Width2.5000 in
Weight0.2720 lbs
