Brady LZR-45-734-10 Laser Markable Labels Acrylic Matte Finish 0.25"H x 1.50"W Polyimide Wh 10000/Rl
Brady LZR-45-734-10 Laser Markable Labels Acrylic Matte Finish 0.25"H x 1.50"W Polyimide Wh 10000/Rl
- MPN: LZR-45-734-10
- UPC: 754473636692
- PPN: BRD-LZR-45-734-10
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2194.02/ EA
Description
This B-734 material is a polyimide that is designed to be permanently marked using IR lasers.
Features

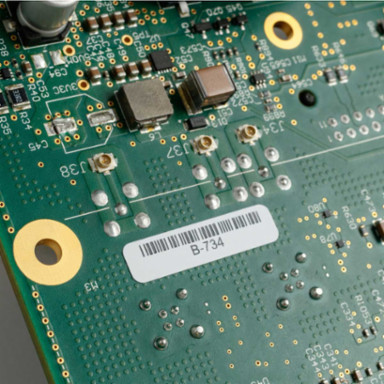

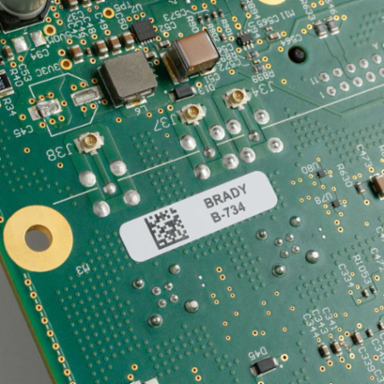

- Ideal for use in circuit boards and electronic components
- Resists repeated harsh washdown cycles
- Resists high temperatures that occur during wave soldering
- Compatible with most IR laser marking systems
Specifications
Specifications
- Applications
- Circuit Board Labeling
- Color
- White
- Corner Type
- Rounded Corners
- Finish
- Matte
- Label/Media Format

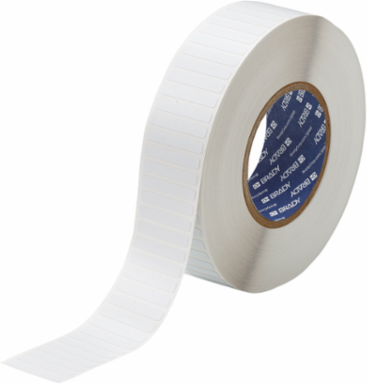

- Labels on a Roll
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Quantity per Row
- 1
- Total Quantity
- 10000
- Brady Material Number
- B-734
- Label Properties
- Aggressive Adhesive Labels; Chemical Resistant; Harsh Environment Labels; Heat Resistant Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Heat-Resistant
- Dimensions
- 0.25 in H x 1.50 in W
- Dimensions 2
- 0.25 in H x 1.50 in W
- Height (mm/cm/m)
- 6.4 mm
- Label/Tape Size (in/ft/yd)
- 0.25 in H x 1.50 in W
- Maximum Service Temperature °F
- 320 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Dimensions (Metric)
- 6.4 mm H x 38.1 mm W
- Printable Area Height (mm/cm/m)
- 6.4 mm
- Printable Area Width (mm/cm/m)
- 38.1 mm
- Thickness (in/ft/yd)
- 0.0051 in
- Vertical Repeat
- 0.35 in
- Web Width (mm/cm/m)
- 43.2 mm
- Width (mm/cm/m)
- 38.1 mm
Brand NameBrady®
Compatible Surface TypesGeneral; High Surface Energy; Low Surface Energy
Enables Industry ComplianceUL 969
For Use with PrinterIR Laser Marking Systems
Patent Number(s)Patent Applied For
Print TechnologyLaser
Quantity per Roll10000
ShapeRectangle
Adhesive TypeAcrylic
Indoor or Outdoor UseIndoor Use
Material PropertiesLaser-engravable; Harsh Wash-resistant
SAP B-NumberB-734
Dimensions (Metric)6.4 mm H
Height (in/ft/yd)0.25 in
Inside Core Diameter (in/ft/yd)3 in
Maximum Service Temperature °C160 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions0.25 in H x 1.50 in W
Printable Area Height (in/ft/yd)0.25 in
Printable Area Width (in/ft/yd)1.50 in
Sign Size-General0.25 in x 1.50 in
Thickness (mm/cm/m)0.13 mm
Web Width (in/ft/yd)1.700 in
Width (in/ft/yd)1.50 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
