Brady LZR-47-735-10 Laser Markable Labels ESD Acrylic Matte 0.20"H x 0.65"W Polyimide Wh 10000/Rl
- MPN: LZR-47-735-10
- UPC: 754473636722
- PPN: BRD-LZR-47-735-10
- UNSPSC: 55121612
CAD
$916.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This B-735 material is a polyimide that is designed to be permanently marked using IR lasers.
Features

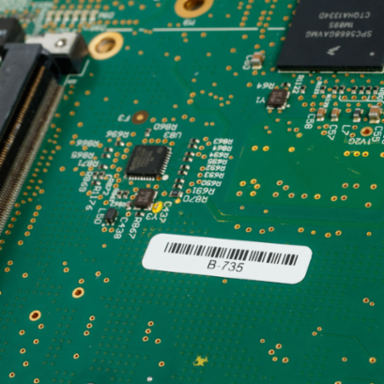

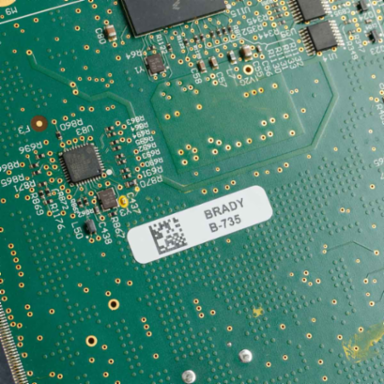

- Ideal for use in circuit boards and electronic components
- Resists repeated harsh washdown cycles
- Resists high temperatures that occur during wave soldering
- Compatible with most IR laser marking systems
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Color
- White

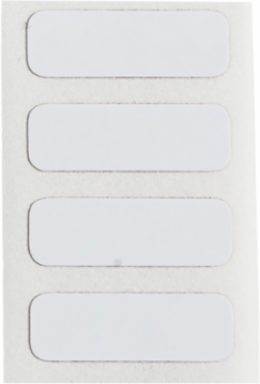

- Corner Type
- Rounded Corners
- Finish
- Matte

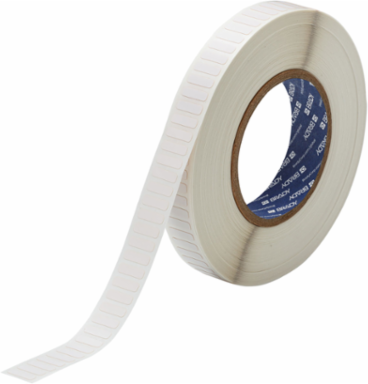

- Label/Media Format
- Labels on a Roll
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Quantity per Row
- 1
- Total Quantity
- 10000
- Brady Material Number
- B-735
- Label Properties
- Aggressive Adhesive Labels; Chemical Resistant; Harsh Environment Labels; Heat Resistant Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Heat-Resistant
- Dimensions
- 0.20 in H x 0.65 in W
- Dimensions 2
- 0.20 in H x 0.65 in W
- Height (mm/cm/m)
- 5.1 mm
- Label/Tape Size (in/ft/yd)
- 0.20 in H x 0.65 in W
- Maximum Service Temperature °F
- 320 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Dimensions (Metric)
- 5.1 mm H x 16.5 mm W
- Printable Area Height (mm/cm/m)
- 5.1 mm
- Printable Area Width (mm/cm/m)
- 16.5 mm
- Thickness (in/ft/yd)
- 0.0056 in
- Vertical Repeat
- 0.20 in
- Web Width (mm/cm/m)
- 21.6 mm
- Width (mm/cm/m)
- 16.5 mm
Brand NameBrady®
Compatible Surface TypesGeneral; High Surface Energy; Low Surface Energy
Enables Industry ComplianceUL 969
For Use with PrinterIR Laser Marking Systems
Patent Number(s)Patent Applied For
Print TechnologyLaser
Quantity per Roll10000
ShapeRectangle
Adhesive TypeAcrylic
Indoor or Outdoor UseIndoor Use
Material PropertiesLaser-engravable; Harsh Wash-resistant; Static-dissipative
SAP B-NumberB-735
Dimensions (Metric)5.1 mm H
Height (in/ft/yd)0.20 in
Inside Core Diameter (in/ft/yd)3 in
Maximum Service Temperature °C160 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions0.20 in H x 0.65 in W
Printable Area Height (in/ft/yd)0.20 in
Printable Area Width (in/ft/yd)0.65 in
Sign Size-General0.20 in x 0.65 in
Thickness (mm/cm/m)0.142 mm
Web Width (in/ft/yd)0.850 in
Width (in/ft/yd)0.65 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Yes - Other Heavy Metals
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalNickel
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
