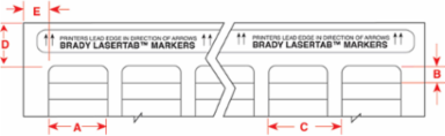

Brady LAT-10-652-10 LaserTab Amber Polyimide Labels, 0.25" H x 1.875" W, Pack of 65 Sheets
- MPN: LAT-10-652-10
- UPC: 662820297284
- PPN: BRD-LAT-10-652-10
- UNSPSC: 55121612
CAD
$4239.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-652 material is ideal for use on printed circuit board and electronic component pre-process labeling.
Features
- Pre-heat can be employed to further enhance print permanence in the case of extreme solvent or abrasion exposure
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Compatible Surface Types
- High Surface Energy
- Finish
- Matte
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- Print Technology
- Laser Printing
- Printer Compatibility
- Laser
- Quantity per Row
- 4
- Total Qty per Pack
- 10140 Label(s) / Pack
- Trade Name
- LaserTab®
- After Process
- Yes, this material will work with this application
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Dimensions
- 0.25 in H x 1.875 in W
- Dimensions 2
- 0.25 in H x 1.875 in W
- Height (mm/cm/m)
- 6.35 mm
- Label/Tape Size (in/ft/yd)
- 0.25 in H x 1.875 in W
- Maximum Service Temperature °C
- 280 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 6.35 mm H x 47.63 mm W
- Printable Area Width (mm/cm/m)
- 47.63 mm
- Sheet Height (mm/cm/m)
- 279.4 mm
- Sheet Width (in/ft/yd)
- 8.5 in
- Sign Size-General
- 0.25 in x 1.875 in
- Thickness (in/ft/yd)
- 0.0044 in
- Top Margin (mm)
- 22.23 mm
- Width (mm/cm/m)
- 47.63 mm
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
ColorAmber
DiagramIcon 64 (LT2)
For Use with PrinterLaser Printers
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Quantity per Card or Sheet156
ShapeRectangle
Total Quantity10140
Adhesive TypePermanent Acrylic
Brady Material NumberB-652
MaterialPolyimide
SAP B-NumberB-652
Dimensions (Metric)47.63 mm W x 6.35 mm H
Height (in/ft/yd)0.25 in
Horizontal Repeat (mm)50.80 mm
Left Margin (mm)7.98 mm
Maximum Service Temperature °F536 °F
Minimum Service Temperature °F-94 °F
Printable Area Height (mm/cm/m)6.35 mm
Sheet Height (in/ft/yd)11 in
Sheet Size215.90 mm x 279.40 mm
Sheet Width (mm/cm/m)215.9 mm
Size - Width (mm)47.63 mm
Thickness (mm/cm/m)0.112 mm
Width (in/ft/yd)1.875 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
