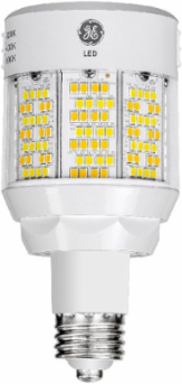

Current Lighting Solutions 93314526 LED HID TYPE B ED17 Lamps
Current Lighting Solutions 93314526 LED HID TYPE B ED17 Lamps
- MPN: 93314526
- UPC: 662049525540
- PPN: GEL-93314526
- UNSPSC: 39112102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$113.16/ EA
Description
LED HID Selectable TYPE B ED17 Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamp for multiple applications
- In-line fuse, EX39 base adapter and fixture label included
- 50,000 hour life with 5 limited year warranty
- Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.
Specifications
Specifications
- Country of Origin
- China
- Bulb Base Type
- E26/EX39
- CCT (K)
- 3000K/4000K/5000 K
- CRI
- 70 CRI
- Dimmable
- No
- Family Optics/Distribution Offering
- Omnidirectional
- Length Metric
- 137.16
- Location Rating
- Damp
- Lumen Range
- 3,400 lm/5,500 lm/7,000 lm
- MOL (In)
- 5.4 in
- Operating Temperature
- -40 to 50 °C
- Safety Certification
- cULus
- Suggested Traditional Replacement
- HID
- UL Type A, B, C
- Type B
- Warranty
- 5 year limited warranty
Base TypeE26/EX39
Bulb ShapeED17
Connect Family NameLED TYPE B HID ED17 Replacement Lamps
Diameter2.6 in
Efficacy (LPW)162 LPW/157 LPW/156 LPW
CategoryLED HID
Lensing DescriptionOmnidirectional
Lumen Maintenance RatingL70 @ 50,000 hours
Lumens3,400 lm/5,500 lm/7,000 lm
Operating Life (Hrs)50,000 hr
Optical DistributionOmnidirectional
SAP Material Number93314526
Technology TypeLED
Voltage (V)120-347 V
Wattage21 W/35 W/45 W
