Current Lighting Solutions 93312102 LED TYPE B HID ED28 Replacement Lamps
- MPN: 93312102
- PPN: GEL-93312102
- UNSPSC: 39112102
CAD
$228.24
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

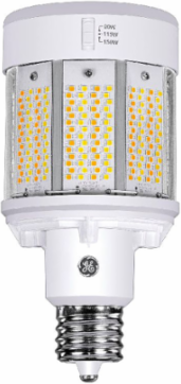

LED TYPE B HID ED28 Replacement Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamps for multiple applications
- LumenChoice Selectable wattage/lumens and SpectraChoice Selectable color temperature using built-in switches
- Tether kit, in-line fuse, fixture label, and horizontal support kit included
- 50,000 hour life with 5 limited year warranty
- Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.
- Selectable LED HID Lamps offer unmatched flexibility in a single lamp, and feature built-in switches to change wattage and color temperature, no tools required
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- EX39
- CCT (K)
- 3000 K/4000 K/5000 K
- CRI
- 70 CRI
- Dimmable
- Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
- Family Optics/Distribution Offering
- Omnidirectional
- Length Metric
- 210.82
- Lumen Maintenance Rating
- L70 @ 50,000 hours
- MOL (In)
- 8.3 in
- Operating Temperature
- -40 to 50 °C
- Safety Certification
- cULus
- Suggested Traditional Replacement
- HID; HPS/MH
- UL Type A, B, C
- Type B
- Warranty
- 5 year limited warranty
Base TypeEX39
Bulb ShapeED28
Connect Family NameLED TYPE B HID ED28 Replacement Lamps
Diameter4.1 in
Efficacy (LPW)156 LPW/157 LPW/157 LPW
CategoryLED HID
Location RatingDamp
Lumens14,000 lm/18,000 lm/23,500 lm
Operating Life (Hrs)50,000 hr
Optical DistributionOmnidirectional
SAP Material Number93312102
Technology TypeLED
Voltage (V)120-277 V
Wattage90 W/115 W/150 W
