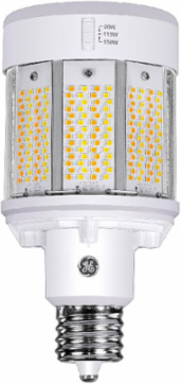

Current Lighting Solutions 93314772 LED TYPE B HID ED28 Replacement Lamps

MPN: 93314772
UPC: 662049525632
PPN: GEL-93314772
UNSPSC: 39112102

$255.71

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

LED TYPE B HID Selectable ED28 Replacement Lamps

Features

Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
Match ANSI standard shape
One lamps for multiple applications
Tether kit, in-line fuse, and fixture label included
50,000 hr life with 5 limited year warranty
Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Bulb Base Type	EX39
CCT (K)	3000 K/4000 K/5000 K
CRI	70 CRI
Dimmable	Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
Family Optics/Distribution Offering	Omnidirectional
Length Metric	210.82
Location Rating	Damp; Enclosed
Lumen Range	14,000 lm/18,000 lm/23,500 lm
MOL (In)	8.3 in
Operating Temperature	-40 to 50 °C
Safety Certification	cULus
Suggested Traditional Replacement	HID; HPS/MH
UL Type A, B, C	Type B
Warranty	5 year limited warranty

Base Type	EX39
Bulb Shape	ED28
Connect Family Name	LED TYPE B HID ED28 Replacement Lamps
Diameter	4.1 in
Efficacy (LPW)	156 LPW/157 LPW/157 LPW
Category	LED HID
Lensing Description	Omnidirectional
Lumen Maintenance Rating	L70 @ 50,000 hours
Lumens	14,000 lm/18,000 lm/23,500 lm
Operating Life (Hrs)	50,000 hr
Optical Distribution	Omnidirectional
SAP Material Number	93314772
Technology Type	LED
Voltage (V)	277-480 V
Wattage	90 W/115 W/150 W
