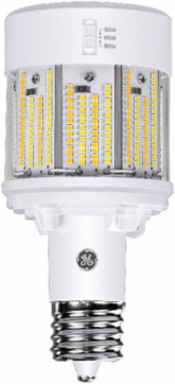

Current Lighting Solutions 93312104 LED TYPE B HID ED23.5 Replacement Lamps
- MPN: 93312104
- PPN: GEL-93312104
- UNSPSC: 39112102
CAD
$190.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
LED TYPE B HID ED23.5 Replacement Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamps for multiple applications
- LumenChoice Selectable wattage/lumens and SpectraChoice Selectable color temperature using built-in switches
- EX39 socket adapter, tether kit, in-line fuse, fixture label, and horizontal support kit included
- 50,000 hour life with 5 limited year warranty
- Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.
- Selectable LED HID Lamps offer unmatched flexibility in a single lamp, and feature built-in switches to change wattage and color temperature, no tools required
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Bulb Base Type | E26/EX39 |
| CCT (K) | 3000 K/4000 K/5000 K |
| CRI | 70 CRI |
| Dimmable | Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices. |
| Family Optics/Distribution Offering | Omnidirectional |
| Length Metric | 198.12 |
| Lumen Maintenance Rating | L70 @ 50,000 hours |
| Lumens | 8,200 lm/10,500 lm/12,500 lm |
| Operating Life (Hrs) | 50,000 hr |
| Optical Distribution | Omnidirectional |
| SAP Material Number | 93312104 |
| Technology Type | LED |
| Voltage (V) | 120-277 V |
| Wattage | 50 W/65 W/80 W |
| Base Type | E26/EX39 |
|---|---|
| Bulb Shape | ED23.5 |
| Connect Family Name | LED TYPE B HID ED23.5 Replacement Lamps |
| Diameter | 3.7 in |
| Efficacy (LPW) | 164 LPW/162 LPW/156 LPW |
| Category | LED HID |
| Location Rating | Damp |
| Lumen Range | 8,200 lm/10,500 lm/12,500 lm |
| MOL (In) | 7.8 in |
| Operating Temperature | -40 to 50 °C |
| Safety Certification | cULus |
| Suggested Traditional Replacement | HID; HPS/MH |
| UL Type A, B, C | Type B |
| Warranty | 5 year limited warranty |
