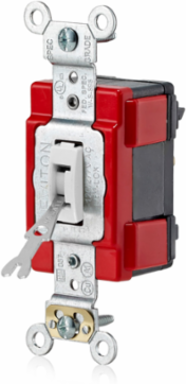

Leviton M1223-WL Lev-Lok Key Switch 20 Amp, 120/277 Volt, 3-Way, Extra Heavy Duty Grade

MPN: M1223-WL
UPC: 078477495223
PPN: LEV-M1223-WL

$54.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

20 Amp, 120/277 Volt, 3 Way Tamper-Resistant Key Switch, Extra Heavy Duty Specification Grade, Self Grounding, Lev-Lok Modular – WHITE

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	False

Standards and Certifications

NEMA	WD-1 & WD-6
UL Fed Spec	WS896
cULus	File # E7458

NOM	057
UL Standard	UL 20

Material Specifications

Base Material	PBT
Cover Material	Nylon
Ground Clips	Brass
Toggle	Polycarbonate

Contacts	Silver-Alloy
Dome	Nylon
Strap Material	Galvanized Steel

Mechanical Specifications

Product ID	Markings are permanently marked on device

Termination	Modular

Product Features

Brand	Lev-Lok
Device Type	Toggle Switch
Grade	Extra Heavy-Duty Industrial Specification Grade

Color	White
Function	3-Way

Warranty

Warranty	10-Year Limited

Environmental Specifications

Flammability	Rated V-2 per UL 94
Storage Temperature	-40ºC to 65ºC

Operating Temperature	-40°C to 65°C

Electrical Specifications

AC Horsepower Ratings	1HP-120V 2HP-240V, 16A Max
Dielectric Voltage	Withstands 1500V for 1 minute
Grounding	Self-Grounding
Temperature Rise	Maximum 30 degrees C rise
