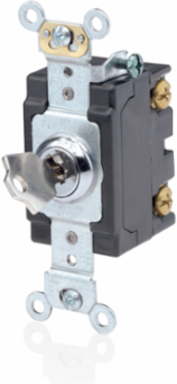

Leviton 1224-2KL 20 Amp Key Locking Toggle Switch, 4-Way, 120/277 Volt, Extra Heavy-Duty Grade
- MPN: 1224-2KL
- UPC: 078477362020
- PPN: LEV-1224-2KL
CAD
$189.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 120/277 Volt, Key Locking 4-Way AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired
Features
- Levitons Extra Heavy-Duty AC Key Locking Switches are the perfect choice for public use areas in schools/universities and pediatric facilities. Operable only with the mating key, it prevents unauthorized personnel from turning the switch ON or OFF.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 20
CSA C22.2 No. 111File #152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Thermoplastic
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd
Product Features
- Device Type
- Key Lock Barrel Switch
- Grade
- Extra Heavy-Duty Industrial Specification Grade
Function4-Way
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Amperage
- 20 A
- Endurance
- 50,000 cycles minimum
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Voltage
- 120/277 VAC
Dielectric VoltageWithstands 1500V for 1 minute
GroundingSelf-Grounding
Temperature RiseMaximum 30 degrees C rise
AC Horsepower Ratings
- HP Rating
- 1HP-120V 2HP-240V-277V
Max. Amperage16 Amp
