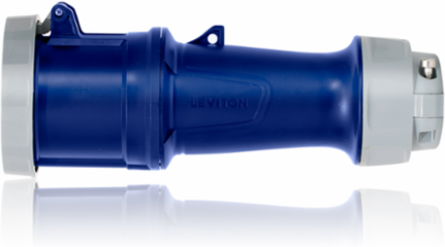

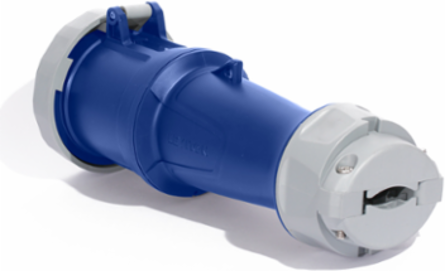

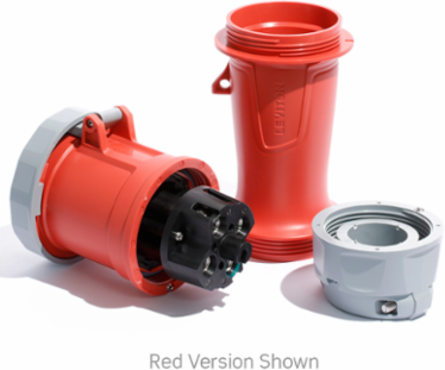

Leviton 360C6WLEV LEV Series IEC 60309 Pin & Sleeve Connector, 60A, 250V, IP66/IP67/IP68/IP69K
- MPN: 360C6WLEV
- UPC: 078477901618
- PPN: LEV-360C6WLEV
CAD
$642.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
60/63 Amp, 250 Volt, 2P, 3W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue
Features
- LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- Best in class 5-year limited warranty!
- Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. LEV Series Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CE
- CE certification
- IEC Rating
- 60309-1, 60309-2
- RoHS
- RoHS compliant components
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOMNOM –ANCE standards
ULUL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- NBR/Buna N
- Terminal Screws
- 303 Stainless Steel
Contact CarrierGlass filled Nylon
HousingImpact Modified Nylon
Mechanical Specifications
- Cable Clamp Screw Torque
- 10 in-lb
- Crush Test
- 250 lbs for 1 min after -25°C for 6 hrs
- Impact
- Drop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours
Conductor Range#8 AWG to #2 AWG
Hardware Head TypeHex style socket screws for terminals, combination screws for all others
Screw Terminal Torque50 in-lb
Product Features

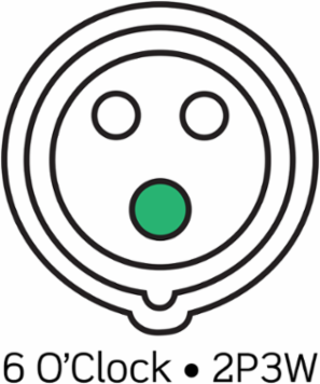

- Clock Position
- 6 o'clock
- Configuration
- North American
- Product Markings
- Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.
ColorBlue
Device TypeConnector
SeriesLEV Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type3R, 4X, 6P and 12
UV ResistanceUV stabilized F1 rated housings
Electrical Specifications
- Amperage
- 60 A / 63 A
- Dielectric Voltage
- 3000V for 1 min.
- Max. Voltage
- 600V
- Pole
- 2
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 3
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Overload UL20 Test50 cycles
SCCR200kA
Voltage250 VAC
