Leviton 430C9WLEV LEV Series 30A IEC Pin & Sleeve Connector, 250V, IP66/IP67/IP68/IP69K
Leviton 430C9WLEV LEV Series 30A IEC Pin & Sleeve Connector, 250V, IP66/IP67/IP68/IP69K
- MPN: 430C9WLEV
- UPC: 078477921241
- PPN: LEV-430C9WLEV
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$486.00/ EA
Description

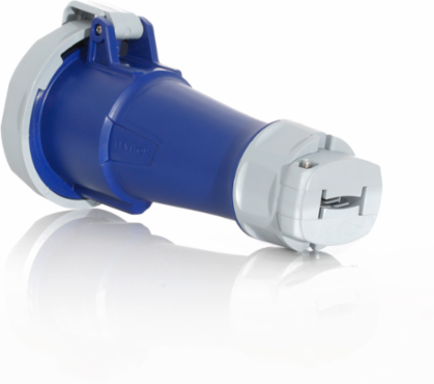

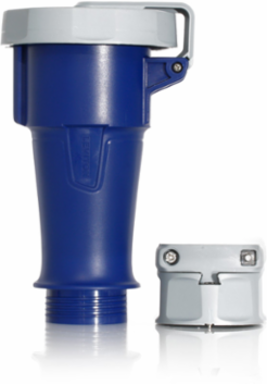

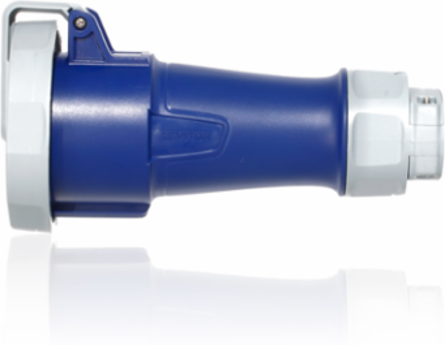

30/32 Amp, 250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue
Features
- LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- Best in class 5-year limited warranty! Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. Calculate Time & Money Saved with the LEV Series Calculator!
Specifications
Standards and Certifications
- CE
- CE certification
- IEC Rating
- 60309-1, 60309-2
- RoHS
- RoHS compliant components
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOMNOM –ANCE standards
ULUL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- NBR/Buna N
- Terminal Screws
- 303 Stainless Steel
Contact CarrierGlass filled Nylon
HousingImpact Modified Nylon
Mechanical Specifications
- Cable Clamp Screw Torque
- 10 in-lb
- Contact Carrier Assembly Screw Torque
- 8 in-lb
- Hardware Head Type
- Hex style socket screws for terminals, combination screws for all others
- Screw Terminal Torque
- 20 in-lb
Conductor Range#10 AWG to #8 AWG
Crush Test250 lbs for 1 min after -25°C for 6 hrs
ImpactDrop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours
Electrical Specification
- Amperage
- 30/32 A
- Dielectric Voltage
- 3000V for 1 min.
- Horsepower Rating
- 3 HP
- Overload UL20 Test
- 50 cycles
- Pole
- 3
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 4
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance1000 cycles rated V and I load, 1000 cycles no-load (30A)
Max. Voltage600V
Phase3-Phase
SCCR200kA
Voltage250 VAC
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Clock Position

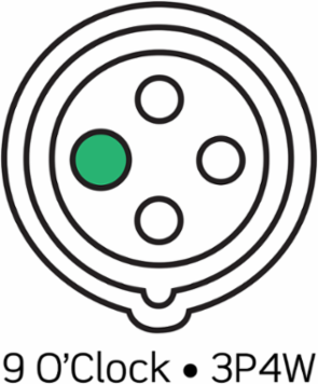

- 9 o'clock
- Configuration
- North American
- Product Markings
- Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.
ColorBlue
Device TypeConnector
SeriesLEV Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type3R, 4X, 6P and 12
UV ResistanceUV stabilized F1 rated housings
