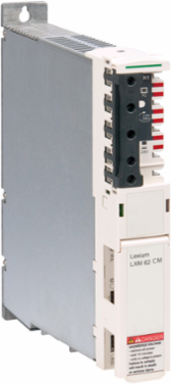

Schneider Electric ILM62CMD20A000 Connector Module - Input/Output 20 A, 250-700 V, 310 mm Height
- MPN: ILM62CMD20A000
- PPN: SCH-ILM62CMD20A000
- UNSPSC: 26111515
CAD
$1645.74
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Connector Module is designed to streamline automation and control applications, providing reliable input and output connectivity with a capacity of 20 A and accommodating voltage ranges from 250 to 700 V. With its compact height of 310 mm, this module not only optimizes space but also integrates seamlessly into motion control systems. Its robust design emphasizes performance and efficiency, making it an essential component for modern industrial setups seeking enhanced operational capabilities.
Features
- Combines motor and drive in one compact unit
- Ensures high-speed, real-time communication via SERCOS III
- Operates with a supply voltage from 250V to 700V, making it adaptable to various industrial power environments
- Handles up to 20A input current, supporting demanding motion control applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United Kingdom, United States |
|---|---|
| Depth | 270 mm |
| Weight | 2773.43 g |
|---|
Complementary Attributes
| Uc Control Circuit Voltage | 24 V DC - 20...25 %) |
|---|
| Us Rated Supply Voltage | 250...700 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.4173919893888791, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.207876465334107, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 431 kg CO2 eq., 431.2041891297399 |
| Local Publishable Date | 2026-09-19 |
| Device Type | Motion - integrated drive |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1407008EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Control Threshold Overvoltage | 860 V |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 480 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 310 mm |
| Accessory / Separate Part Category | connection accessories |
| Customs Code | 8536904000 |
| Packaging Weight In G | 654.4 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Pep End Of Validity Date Calculated | 2031-09-24 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 5 kg CO2 eq., 4.691025317508463 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 43 kg CO2 eq., 42.75286040990418 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Device Short Name | ILM |
| Overvoltage Category | class 3 conforming to IEC 61800-5-1 |
| Product Or Component Type | connector module |
| Returnability | Yes |
| Sustainable Packaging | No |
| Type Of Cooling | natural convection |
| Data Source | referent product |
| Width Nominal | 44.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To supply DC power and communication signals to ILM62 Servo Modules through a DC bus network in industrial automation applications for 10 years. with a power consumption of 10 W. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 56 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 480.2733433118756 |
| Environmental Disclosure | ENVPEP1407008EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1407008EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-09-24 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | connector module |
|---|
| Range Of Product | PacDrive 3 |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
Output Attributes
| Output Current | 20 A |
|---|
| Peak Output Current | 40 A |
|---|
Input Attributes
| Input Current | 20 A |
|---|
Accessories
