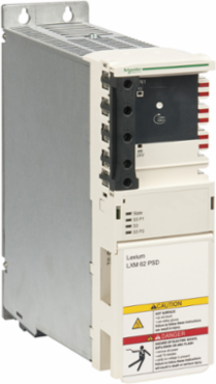

Schneider Electric LXM62PD20A11000 Lexium 62 Power Supply Drive 10/20 A, 6.3 kg, 400 V, IP20
- MPN: LXM62PD20A11000
- PPN: SCH-LXM62PD20A11000
CAD
$2917.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V three/single phase and a rated supply current of 10A single/three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CE and CSA. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth270 mm
Complementary Attributes
- Line Rated Current
- 10 A single phase AC, 10 A three phase AC
- Maximum Braking Power
- 46 kW
- Maximum Dc Bus Voltage
- 860 V
Maximum Power10.4 kW 400 V three phase AC, 12.5 kW 480 V three phase AC
Maximum Cable Capacity1.36 mF
Important Information Attributes
- Persona Type Ids
- EU, OM
- Nominal Power
- 5.2 kW 400 V three phase AC, 6.2 kW 480 V three phase AC
- Safety Level
- can reach SIL 2 IEC 61508, can reach PL d/category 3 ISO 13849-1
- Certificate Agency
- UL, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9422495078, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 961 kg CO2 eq., 961.4
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Bus Voltage
- 270-700 V
- Environmental Characteristic
- 3K3 IEC 60721-3-3 5-85 %
- Marking
- CE
- Permanent Braking Power
- 400 W
- Product Or Component Type
- power supply
- Returnability
- Yes
- Supply Circuit Type
- AC
- Sustainable Packaging
- No
- Vibration Resistance
- 10 m/s² IEC 60721-3-3
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Tu supply the connected servo converters up to 128W during 10 years and a 80% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 1962.24
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 89.5 mm
- Accessory / Separate Part Category
- power supply
- Package Weight(Lbs)
- 7.286 kg
- Warranty (In Months)
- 18
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 0.5012
Persona Type NamesEnd User, Original Equipment Manufacturer
Peak Current20 kA single phase AC 1 s, 20 kA three phase AC 1 s
Shock Resistance100 m/s² in operation IEC 60721-3-3, 300 m/s² during transport IEC 60721-3-3
[Us] Rated Supply Voltage380...480 V three phase - 10...10 %), 208...360 V three phase - 10...10 %), 208...270 V single phase - 10...10 %)
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.3816386379
Carbon Footprint Of The Manufacturing Phase [A1 To A3]53 kg CO2 eq., 52.8622952124
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Use Carbon Footprint961.4
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1406028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Braking Resistance15 Ohm
Component NameLXM62
Holding Time15 min
Overvoltage CategoryIII conforming to IEC 61800-5-1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Software VersionEIME v5.8.1
Supply Frequency50/60 Hz +/- 5 %
Total Lifecycle Carbon Footprint1 019 kg CO2 eq.
Pep CodeENVPEP1406028EN
Pep Verification Date2020-08-01
Psr VersionPSR-0010-ed1.1-EN-2015 10 16
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal310 mm
[Uc] Control Circuit Voltage24 V DC - 20...25 %)
Nbr. Of Units In Pkg.1
Take-backNo
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]961.4
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]2.394
Environment Attributes Main
- Ambient Air Temperature For Operation
- 40-55 °C (with current derating of 2 % per °C), 5-40 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1018.5861833581
- Environmental Disclosure
- ENVPEP1406028EN
- Ip Degree Of Protection
- IP20 IEC 60721-3-3 with plugged-in connectors)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1406028EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-55 °C, -25-55 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1406028EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Psr VersionPSR-0010-ed1.1-EN-2015 10 16
General Attributes
- Product Or Component Type
- power supply
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC002541
ETIM 9EC002541
Output Attributes
- Output Type
- 2 relays volt-free contacts
Power Supply Output Current20 A
