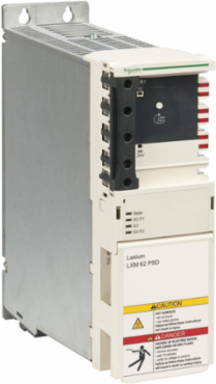

Schneider Electric LXM62PD84A11000 Lexium 62 Power Supply Drive 42A Three Phase, 89.5mm Width, 310mm Height
- MPN: LXM62PD84A11000
- PPN: SCH-LXM62PD84A11000
CAD
$3912.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CSA and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Mexico, United States
Depth270 mm
Complementary Attributes
- Line Rated Current
- 21 A single phase AC, 42 A three phase AC
- Maximum Braking Power
- 46 kW
- Maximum Dc Bus Voltage
- 860 V
Maximum Power44.2 kW 400 V three phase AC, 53.2 kW 480 V three phase AC
Maximum Cable Capacity1.36 mF
Important Information Attributes
- Persona Type Ids
- EU, OM
- Nominal Power
- 22.1 kW 400 V three phase AC, 26.6 kW 480 V three phase AC
- Safety Level
- can reach SIL 2 IEC 61508, can reach PL d/category 3 ISO 13849-1
- Certificate Agency
- CSA, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9567, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 4 326 kg CO2 eq., 4326.3
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Distribution Carbon Footprint
- 0.9567
- End Of Life Carbon Footprint
- 3.4335
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1406028EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Braking Resistance
- 15 Ohm
- Component Name
- LXM62
- Holding Time
- 15 min
- Overvoltage Category
- III conforming to IEC 61800-5-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- PacDrive 3
- Software Version
- EIME v5.8.1
- Supply Frequency
- 50/60 Hz +/- 5 %
- Total Lifecycle Carbon Footprint
- 4 384 kg CO2 eq.
- Pep Code
- ENVPEP1406028EN
- Pep Verification Date
- 2020-08-01
- Psr Version
- PSR-0010-ed1.1-EN-2015 10 16
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 310 mm
- [Uc] Control Circuit Voltage
- 24 V DC - 20...25 %)
- Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
- 4384.3
- Package Weight(Lbs)
- 7.312 kg
- Warranty (In Months)
- 18
- Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
- 18.046
- Air Pollution (M3) Manufacturing [A1-a3]
- 11102
- Air Pollution (M3) Operational Energy Use [B6]
- 186200
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 49639
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 13.441
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 11.054
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 53.673
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 4326.3
- Hazardous Waste Disposed Of (Kg) Total Life Cycle
- 134.45
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.2554
- Materials For Recycling (Kg) Total Life Cycle
- 5.0568
- Net Use Of Fresh Water (M3) Total Life Cycle
- 15686
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 16157
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 16130
- Photochemical Ozone Formation (Kg.Equivalent.C2h4) Operational Energy Use [B6]
- 0.9916
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 10.773
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 956.88
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 75418
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 87429
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 13.527
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 13.652
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 40.072
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 37.584
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 76364
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 13.509
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 13.638
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 21.872
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 18.2
- Use Of Secondary Materials (Kg) Total Life Cycle
- 1.2857
- Water Eutrophication (Kg.Equivalent.P04 3-) Total Life Cycle
- 1.1416
- Water Pollution (M3) Total Life Cycle
- 184160
- Water Pollution (M3) Distribution [A4]
- 157.33
- Water Pollution (M3) End Of Life [C1-c4]
- 212.77
Persona Type NamesEnd User, Original Equipment Manufacturer
Peak Current42 A single phase AC 1 s, 84 A three phase AC 1 s
Shock Resistance100 m/s² in operation IEC 60721-3-3, 300 m/s² during transport IEC 60721-3-3
[Us] Rated Supply Voltage380...480 V three phase - 10...10 %), 208...360 V three phase - 10...10 %), 208...270 V single phase - 10...10 %)
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.4335
Carbon Footprint Of The Manufacturing Phase [A1 To A3]54 kg CO2 eq., 53.673
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint53.673
Use Carbon Footprint4326.3
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Bus Voltage270-700 V
Environmental Characteristic3K3 IEC 60721-3-3 5-85 %
MarkingCE
Permanent Braking Power400 W
Product Or Component Typepower supply
ReturnabilityYes
Supply Circuit TypeAC
Sustainable PackagingNo
Vibration Resistance10 m/s² IEC 60721-3-3
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTu supply the connected servo converters up to 128W during 10 years and a 80% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh8830.08
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal89.5 mm
Accessory / Separate Part Categorypower supply
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle18.19
Air Pollution (M3) Total Life Cycle197440
Air Pollution (M3) Distribution [A4]40.697
Air Pollution (M3) End Of Life [C1-c4]97.583
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]508.25
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]49107
Global Warming (Kg.Equivalent.Co2) Total Life Cycle4384.3
Global Warming (Kg.Equivalent.Co2) Distribution [A4]0.9567
Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]3.4335
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]119.95
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]12.245
Materials For Recycling (Kg) End Of Life [C1-c4]4.5008
Net Use Of Fresh Water (M3) Operational Energy Use [B6]15686
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]27.219
Photochemical Ozone Formation (Kg.Equivalent.C2h4) Total Life Cycle1.0067
Radioactive Waste Disposed Of (Kg) Total Life Cycle10.795
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle76402
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]13.509
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]13.638
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]996.95
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]86405
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle11027
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]10987
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]37.584
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]919.3
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]75418
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle21.872
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle11005
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]10987
Use Of Secondary Materials (Kg) Manufacturing [A1-a3]1.2857
Water Eutrophication (Kg.Equivalent.P04 3-) Operational Energy Use [B6]1.0896
Water Pollution (M3) Manufacturing [A1-a3]5274.2
Water Pollution (M3) Operational Energy Use [B6]178520
Environment Attributes Main
- Ambient Air Temperature For Operation
- 40-55 °C (with current derating of 2 % per °C), 5-40 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 4384.3
- Environmental Disclosure
- ENVPEP1406028EN
- Ip Degree Of Protection
- IP20 IEC 60721-3-3 with plugged-in connectors)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1406028EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-55 °C, -25-55 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1406028EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Psr VersionPSR-0010-ed1.1-EN-2015 10 16
General Attributes
- Product Or Component Type
- power supply
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC002541
ETIM 9EC002541
Output Attributes
- Output Type
- 2 relays volt-free contacts
Power Supply Output Current84 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
