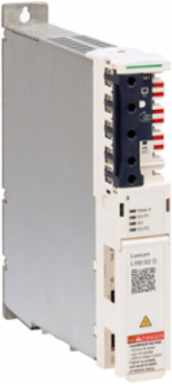

Schneider Electric LXM62DU60C21000 Lexium 62 Single Drive 2A Continuous Current, 0.95kW Power, IP20
- MPN: LXM62DU60C21000
- PPN: SCH-LXM62DU60C21000
CAD
$3623.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 2A at 4kHz and a continuous power of 0.95kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets CSA C22.2 No 14, EN/ISO 13849-2, UL 508C, IEC 62061, EN 61800-5-2 and EN/ISO 13849-1 standards. This product is compatible with servo motor SH3 (55mm, 1 motor stack), servo motor SH3 (55mm, 2 motor stacks) and servo motor SH3 (55mm, 3 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
| Depth | 270 mm |
|---|
Communications & Management Attributes
| Communication Interface | SERCOS III, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 1.2 A |
|---|---|
| Maximum Current Irms | 6.0 A |
| Minimum Ambient Air Temperature For Operation | 5.0 °C |
| Maximum Ambient Air Temperature For Operation | 55.0 °C |
|---|---|
| Maximum Operational Altitude | 3000.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Electrical Connection | terminal 0.2...15 mm², 24 AWG...16 AWG CN4), terminal 0.5...16 mm², 20 AWG...6 AWG CN5), terminal 0.75...16 mm², 18 AWG...6 AWG CN6), terminal 0.2...6 mm², 24 AWG...10 AWG CN7) |
| Supply Voltage | 208-360 V three phase, 380-480 V three phase |
| [Us] Rated Supply Voltage | 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 480 V |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 6 kg CO2 eq., 6.33138154147887 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 566 kg CO2 eq., 566.0842979632071 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Continuous Power | 0.95 kW |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Environmental Characteristic | 3K3 conforming to IEC 60721-3-3 |
| Minimum Ambient Air Temperature For Operation | 5.0 °C |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Safety Function | STO (safe torque off) |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Tightening Torque | CN1 2.5-2.5 N.m |
| Vibration Resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 8339.52 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 310 mm |
| Maximum [In] Rated Current | 1.2 A |
| Package Weight(Lbs) | 3.840 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Nominal Voltage | 230 V three phase, 400 V three phase |
| Certificate Agency | CE, TÜV, UL, CSA, EAC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.2782740173207116, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 1.606620261151621, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 4 042 kg CO2 eq., 4041.938244045323 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1406012EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Component Name | LXM62 |
| Derating Altitude Scale | 80.0 m |
| Derating Temperature Scale | 66.66666667 °C |
| Device Short Name | LXM 62 |
| Maximum Operational Altitude | 3000.0 m |
| Nominal Power | 0.95 kW |
| Phase | three phase |
| Product Or Component Type | single drive |
| Returnability | Yes |
| Shock Resistance | 100 m/s² IEC 60721-3-3 |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Switching Frequency | 8 kHz |
| Total Lifecycle Carbon Footprint | 4 616 kg CO2 eq. |
| Pep Code | ENVPEP1406012EN |
| Pep Verification Date | 2025-08-28 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity origin |
| Recyclability Potential In % | 57 |
| Width Nominal | 44.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504404000 |
Environment Attributes Main
| Product Compatibility | servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SHSservo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 1 optimized in terms of torque and speed |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 5-55 °C |
| Environmental Disclosure | ENVPEP1406012EN |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-85 % |
| Pep Verification Date | 2025-08-28 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 4616.238817828481 |
| Circularity Profile | ENVEOLI1406012EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1406012EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | PacDrive 3 |
| Product Or Component Type | single drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Output Current 3s Peak | 6 A 4 kHz, 6.0 A |
|---|---|
| Discrete Output Voltage | 24 V DC |
| Continuous Output Current | 2 A 4 kHz |
|---|---|
| Number Of Outputs | 2 digital |
Input Attributes
| Number Of Inputs | 2 digital, 2 touch probe |
|---|
| Discrete Input Voltage | 24 V DC for - 20...25 % |
|---|
