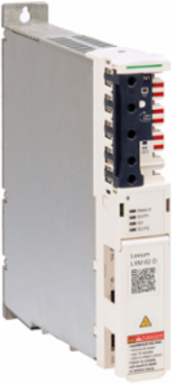

Schneider Electric LXM62DD27C21000 Lexium 62 Single Drive, 27 A, 4.3 kW, 9 A Continuous Output
Schneider Electric LXM62DD27C21000 Lexium 62 Single Drive, 27 A, 4.3 kW, 9 A Continuous Output
- MPN: LXM62DD27C21000
- PPN: SCH-LXM62DD27C21000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4548.69/ EA
Description
This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 9A at 4kHz and a continuous power of 4.3kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets IEC 62061, EN 61800-5-2, UL 508C, IEC 61508, EN/ISO 13849-1, CSA C22.2 No 14 and EN 62061 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406012EN
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406012EN
Complementary
- [Us] Rated Supply Voltage
- 400 V - 10...10 %)three phase || 230 V - 10...10 %)three phase || 230 V - 10...10 %)single phase
- Number Of Outputs
- 2 digital
- Height
- 310 mm
- Network Number Of Phases
- three phase
- Number Of Inputs
- 2 digital || 2 touch probe
- Electrical Connection
- terminal 0.2...15 mm², AWG 24...AWG 16 CN4) || terminal 0.5...16 mm², AWG 20...AWG 6 CN5) || terminal 0.75...16 mm², AWG 18...AWG 6 CN6) || terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
- Switching Frequency
- 8 kHz
- Product Compatibility
- servo motor SHS || servo motor SH3 100 mm, 3 optimized in terms of torque and speed || servo motor SH3 100 mm, 4 optimized in terms of torque and speed || servo motor SH3 140 mm, 1 optimized in terms of torque and speed || servo motor MH3 100 mm, 2 optimized in terms of torque and speed
- Overvoltage Category
- III
- Tightening Torque
- CN1 2.5-2.5 N.m
- Continuous Output Current
- 9 A 4 kHz
Continuous Power4.3 kW
Output Current 3S Peak27 A 4 kHz
Discrete Input Voltage24 V DC for - 20...25 %
Net Weight3 kg
Communication InterfaceSERCOS III, integrated
Discrete Output Voltage24 V DC
Safety FunctionSTO (safe torque off)
Width44.5 mm
Depth270 mm
Nominal Power4.3 kW
Supply Frequency50/60 Hz - 5...5 %
Specifications
- Range Of Product
- PacDrive 3
- Device Short Name
- LXM 62
Product Or Component Typesingle drive
Environment
- Product Certifications
- TÜV || UL || EAC || CSA || CE
- Standards
- IEC 62061 || IEC 61800-5-2 || UL 508C || IEC 61508 || ISO 13849-1 || CSA C22.2 No 14 || IEC 61800-3 || IEC 61800-5-1 || ISO 13849-2
- Environmental Characteristic
- 3K3 IEC 60721-3-3
- Relative Humidity
- 5-85 %
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation5-55 °C
Shock Resistance100 m/s² IEC 60721-3-3
Vibration Resistance10 m/s²IEC 60721-3-3
Pollution Degree2 IEC 61800-5-2
