Balluff

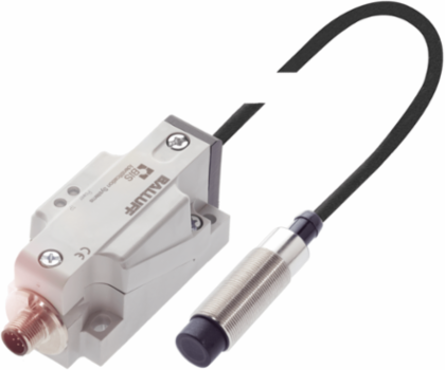

Balluff BIS L-400-040-002-00-S115 LF read/write heads (125 kHz) with integrated processor unit BIS L-400-040-002-00-S115

LF read/write heads (125 kHz) with integrated processor unit BIS L-400-040-002-00-S115
  • MPN: BIS L-400-040-002-00-S115
  • PPN: BAL-BIS00CE

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1569.20/ EA

Description

BIS L uses the low frequency (LF) 125 kHz and uses passive data carriers. The read heads with an integrated processor unit can be connected easily and directly to the higher-level control system via IO-Link, RS232/RS422 or with parallel signals. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Specifications

Specifications

Product Group
LF (125 kHz)
Dimension
Ø 18 x 75 mm
Antenna type
round
Housing material
Brass, Interface PBT
Operating voltage Ub
19.2-26.4 VDC
IP rating
IP67
Principle of operationRead/write device
Installationmetal-free (clear zone)
ConnectionConnector, M12x1-Male, 8-pin, 0.50 m, PU
InterfaceRS232
Ambient temperature0-70 °C
Approval/ConformityCE, cULus, WEEE
