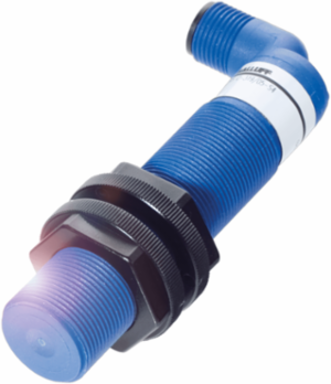

Balluff BIS C-319/10-S4 LF read/write heads and antennas (70/455 kHz) BIS C-319/10-S4

LF read/write heads and antennas (70/455 kHz) BIS C-319/10-S4
  • MPN: BIS C-319/10-S4
  • PPN: BAL-BIS007C

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$633.62/ EA

Description

BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Read/write heads are the link between the data carrier and processor unit. They are available in a wide variety of configurations, dimensions – for example, as round/rod antennas. BIS C is established as the standard for tool identification. It can be mounted flush, even directly onto metal.

Specifications

Specifications

Product Group
LF (70/455 kHz)
Installation
metal-free (clear zone)
Connection
M12x1-Male
Storage temperature
-20-85 °C
IP rating
IP67
DimensionØ 18 x 86.5 mm
Antenna typeround
Housing materialPBT, Blue, Nuts PA66 black
Ambient temperature0-70 °C
Approval/ConformityCE, cULus, WEEE
