Balluff

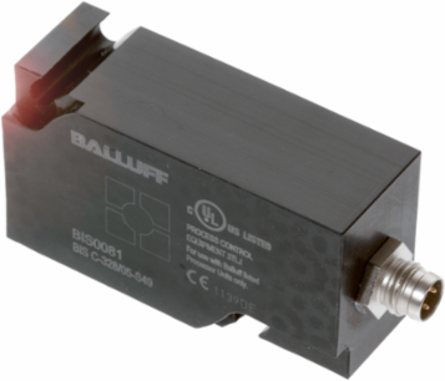

Balluff BIS C-328/05-S49 LF read/write heads and antennas (70/455 kHz) BIS C-328/05-S49

LF read/write heads and antennas (70/455 kHz) BIS C-328/05-S49
  • MPN: BIS C-328/05-S49
  • PPN: BAL-BIS0081

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$723.82/ EA

Description

BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Read/write heads are the link between the data carrier and processor unit. They are available in a wide variety of configurations, dimensions – for example, as round/rod antennas. BIS C is established as the standard for tool identification. It can be mounted flush, even directly onto metal.

Specifications

Specifications

Product Group
LF (70/455 kHz)
Installation
metal-free (clear zone)
Housing material
POM
Ambient temperature
0-70 °C
Approval/Conformity
CE, cULus, WEEE
Dimension30 x 20 x 55 mm
Antenna typeright-angle
Storage temperature-20-85 °C
IP ratingIP67
