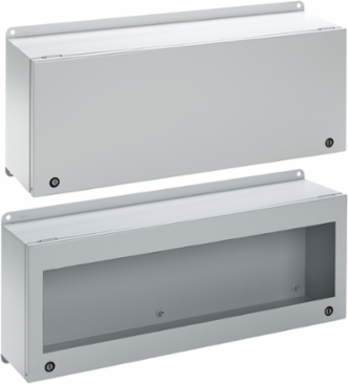

nVent Hoffman LHC234616 InLine Landscape Enclosure Type 4 230x460x155mm, Steel, IP66, Light Gray
- MPN: LHC234616
- UPC: 783510110246
- PPN: HOF-LHC234616
- UNSPSC: 39121303
CAD
$305.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Landscape orientation makes it easy to mount components when minimal height is needed. This InLine Landscape Enclosure Type 4 12, LHC234616 item measures 230x460x155mm a material of Steel colored Light Gray.
Features
- Metric dimensions
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- External welded-on mounting brackets for easy installation
- Bonding provision on cover and door
- Hardware kit includes panel mounting screws and grounding hardware
- Removable hinged door
- Self-grounding, slotted quarter-turn latches
- Door opens 180 degrees
- Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 460 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.5 |
| Mounting Studs (J) | 16.36 |
| Cover Style | Solid |
| Weight | 13.8 |
| Material | Steel |
| Color | LtGray |
| Height (H) | 230 |
|---|---|
| Depth (D) | 155 |
| Product Family | InLine |
| Color Code | RAL 7035 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Clear Space Above Panel | 5.51 |
| IP Rating | IP66 |
| Sub Brand | InLine |
| Size | 230x460x155mm |
