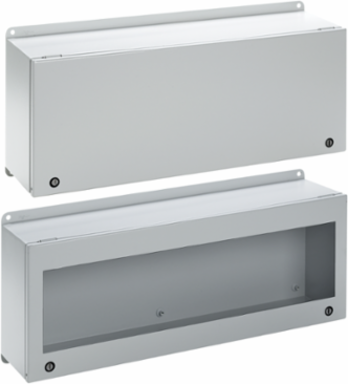

nVent Hoffman LWC239316 InLine Landscape Enclosure Type 4, 230x930x155mm, Steel, IP66
- MPN: LWC239316
- UPC: 783510110352
- PPN: HOF-LWC239316
- UNSPSC: 39121303
CAD
$522.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Landscape orientation makes it easy to mount components when minimal height is needed. This InLine Landscape Enclosure Window Type 4 12, LWC239316 item measures 230x930x155mm a material of Steel colored Light Gray.
Features
- Metric dimensions
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- External welded-on mounting brackets for easy installation
- Bonding provision on cover and door
- Hardware kit includes panel mounting screws and grounding hardware
- Removable hinged door
- Self-grounding, slotted quarter-turn latches
- Door opens 180 degrees
- Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 930
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.5
- Mounting Studs (J)
- 34.67
- Cover Style
- Window
- Weight
- 24.4
- Sub Brand
- InLine
- Size
- 230x930x155mm
Height (H)230
Depth (D)155
Product FamilyInLine
Color CodeRAL 7035
NEMA Rating12 Indoor, dust-resistant
Clear Space Above Panel5.51
IP RatingIP66
Window Size (M x N)139 x 874
MaterialSteel
ColorLtGray
