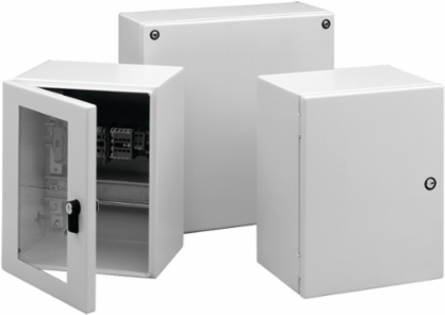

nVent Hoffman LWC201512 InLine Enclosure Type 4, 200x150x120mm, NEMA 4, Steel, Light Gray
- MPN: LWC201512
- UPC: 783510611309
- PPN: HOF-LWC201512
- UNSPSC: 39121303
CAD
$248.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Inline offers versatility with Window, hinged or screw cover metric dimensioned enclosures. This InLine Enclosure with Window Type 4, LWC201512 item measures 200x150x120mm with a material of Steel colored Light Gray.
Features
- Metric dimensions
- 16 gauge steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 150 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.52 |
| Window Size (M x N) | 5.87 x 2.31 |
| IP Rating | IP55 |
| Sub Brand | InLine |
| Size | 200x150x120mm |
| Height (H) | 200 |
|---|---|
| Depth (D) | 120 |
| Product Family | InLine |
| Color Code | RAL 7035 |
| NEMA Rating | 4 Watertight |
| Mounting (G x H) | 182 x 85 |
| Weight | 4.2 |
| Material | Steel |
| Color | LtGray |
