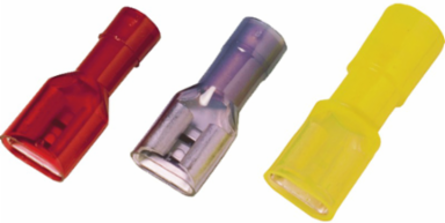

Weidmuller 9200650000 LIF 2,5F638 RF
- MPN: 9200650000
- PPN: WDM-9200650000
CAD
$0.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC000516
- eClass 9.0
- 27-44-03-92
- eClass 10.0
- 27-44-03-92
ETIM 7.0EC000516
eClass 9.127-40-02-90
UNSPSC23-17-16-04
Connectors
- Conductor cross-section, max.
- 2.5 mm²
- Dimension
- 6.3 x 0.8 mm
- Identification colour
- blue
- Material/plastic
- PVC
- Plastic collar length (b)
- 10.5 mm
- Plug-in width (d2)
- 6.3 mm
Conductor cross-section, min.1.5 mm²
Dimension (flat blade connector)6.3 x 0.8 mm
InsulationFully insulated
Plastic collar diameter (D)5 mm
Plug-in density (d3)0.8 mm
Dimensions And Weights
- Width
- 22 mm
- Depth
- 6.3 mm
- Net weight
- 1.25 g
Width (inches)0.866 inch
Depth (inches)0.248 inch
Approvals
- Approvals
- GOSTME25
ROHSConform
