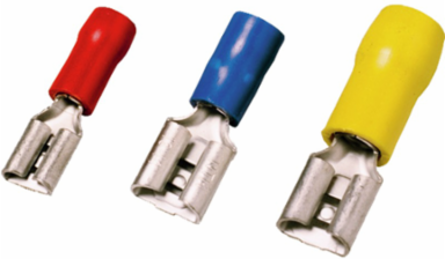

Weidmuller 9200520000 LIF 1,5F288 R
- MPN: 9200520000
- PPN: WDM-9200520000
CAD
$0.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC000516
- eClass 9.0
- 27-44-03-92
- eClass 10.0
- 27-44-03-92
ETIM 7.0EC000516
eClass 9.127-40-02-90
UNSPSC23-17-16-04
Dimensions And Weights
- Width
- 18.7 mm
- Depth
- 5.7 mm
- Net weight
- 0.62 g
Width (inches)0.736 inch
Depth (inches)0.224 inch
Connectors
- Conductor cross-section, max.
- 1.5 mm²
- Dimension
- 2.8 x 0.8 mm
- Identification colour
- red
- Material/plastic
- PVC
- Plastic collar length (b)
- 10 mm
- Plug-in width (d2)
- 2.8 mm
Conductor cross-section, min.0.5 mm²
Dimension (flat blade connector)2.8 x 0.8 mm
InsulationAvailable
Plastic collar diameter (D)4 mm
Plug-in density (d3)0.8 mm
Approvals
- Approvals
- GOSTME25
ROHSConform
