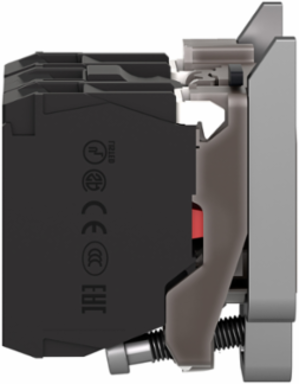

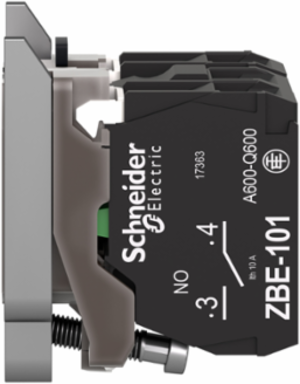

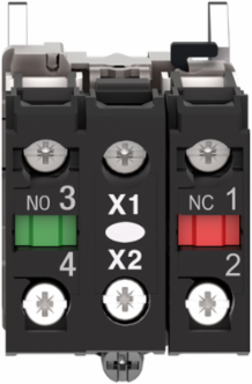

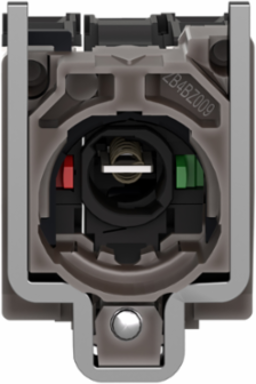

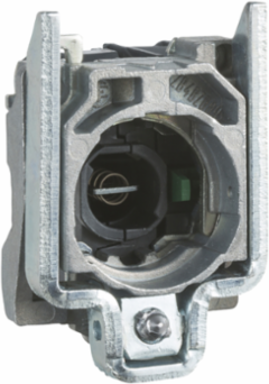

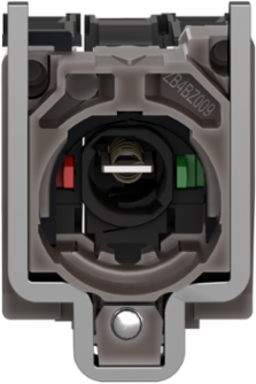

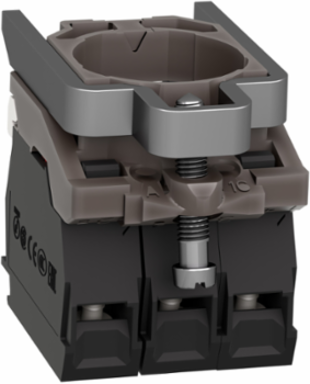

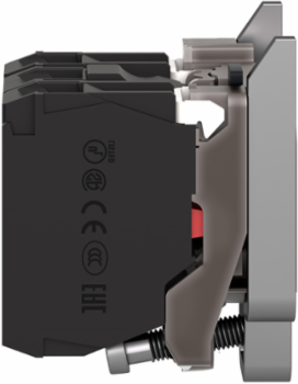

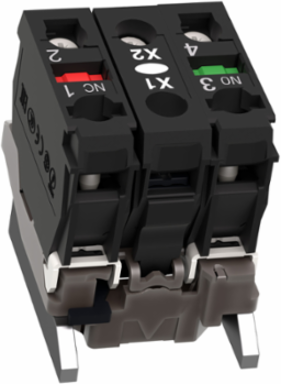

Schneider Electric ZB4BW065 Harmony XB4 Light Block, Metal, 1 NO + 1 NC, BA9s Bulb, IP20

MPN: ZB4BW065
PPN: SCH-ZB4BW065

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$71.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

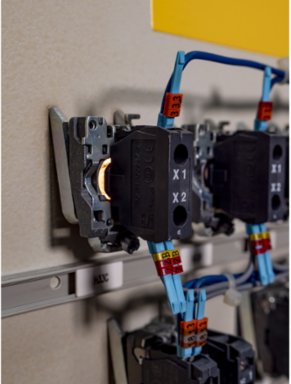

This Harmony XB4, light block with body/fixing collar isoperates with BA9s bulb. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

Features

Equipped with a 1 NO + 1 NC (Normally Open and Normally Closed) dual-contact block, this configuration allows you to simultaneously trigger a system function while cutting a safe path or sending a feedback loop. The standard slow-break silver alloy (Ag/Ni) contacts ensure dependable, stable switching over a massive lifespan of 5,000,000 mechanical operating cycles.
Designed with an integrated BA9s base lamp socket rated up to 250V, this component allows you to select your own standard incandescent, neon, or energy-efficient universal LED bulb. This open-source lighting approach eliminates the constraint of proprietary, built-in light sources, providing a highly cost-effective way to customize indicator brightness and color matching.
The unit utilizes a rugged Zamak metal body fixing collar featuring an optimized clip-together sub-assembly mechanism. This allows maintenance technicians to mount the head operator quickly, while the heavy-duty screw-clamp terminal connections accommodate standard flat, Philips, or Pozidriv screwdrivers for immediate, wire-and-tighten electrical connection.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Physical Attributes

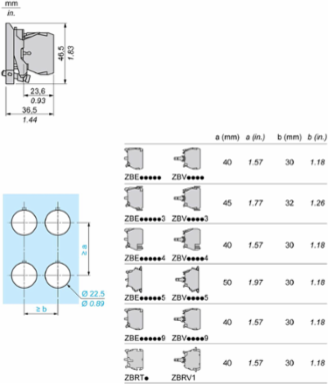

Cad Overall Depth	37 mm
Cad Overall Width	30 mm

Cad Overall Height	47 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
[Us] Rated Supply Voltage	<= 250 V, <= 250 V
Carbon Footprint Of The Distribution Phase [A4]	0.011197271, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0102912281, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	54 kg CO2 eq., 53.893556015
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1808008EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	21 %
Bulb Base	BA 9s
Contact Operation	slow-break
Contacts Type And Composition	1 NO + 1 NC
Device Short Name	ZB4
Fixing Collar Material	zamak
Light Block Supply	direct <2.4 W
Operating Force	2 N NC changing electrical state2.3 N NO changing electrical state
Operating Travel	1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	55 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	70.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Source	bulb not included, bulb not included
Contacts Composition	1 NO + 1 NC
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1	(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.1166189084
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.5 kg CO2 eq., 0.5268216374
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	37 %
Compatibility Code	ZB4
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard
Electrical Shock Protection Class	class I conforming to IEC 60536
Head Type	standard
Mechanical Durability	5000000 cycles
Operating Torque	0.05 N.m NO changing electrical state
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body/contact assembly and light block
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1
Signalling Type	steady
Supply Voltage	250 V
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP1808008EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	75
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509033

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	54.5584850598
Environmental Disclosure	ENVPEP1808008EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	21 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1808008EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1808008EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
