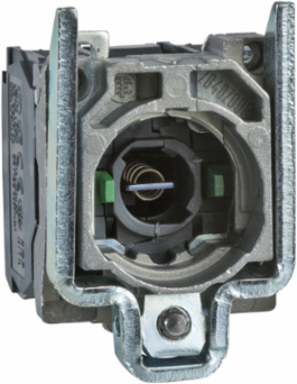

Schneider Electric ZB4BW063 Harmony XB4 Light Block Assembly for BA9s Bulb, Metal, 2 NO Contacts
- MPN: ZB4BW063
- PPN: SCH-ZB4BW063
CAD
$71.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, light block with body/fixing collar isoperates with BA9s bulb. It has 2 x NO contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes

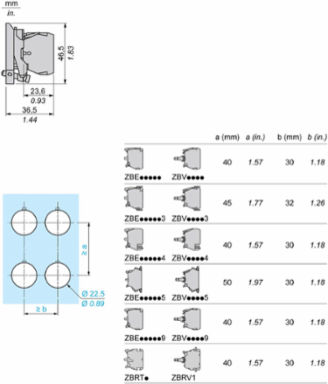

- Cad Overall Depth
- 37 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Important Information Attributes
- Customizable
- 0, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Certificate Agency
- DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
- [Us] Rated Supply Voltage
- <= 250 V, <= 250 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0110373099, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0101442105, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 5 kg CO2 eq., 5.4092977129
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1808008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 21 %
- Bulb Base
- BA 9s
- Contact Operation
- slow-break
- Contacts Type And Composition
- 2 NO
- Device Short Name
- ZB4
- Fixing Collar Material
- zamak
- Light Block Supply
- direct <2.4 W
- Operating Force
- 2.3 N NO changing electrical state
- Operating Travel
- 2.6 mm NO changing electrical state)4.3 mm total travel)
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509035
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourcebulb not included, bulb not included
Contacts Composition2 NO
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.114952924
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.519295614
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content37 %
Compatibility CodeZB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard
Electrical Shock Protection Classclass I conforming to IEC 60536
Head Typestandard
Mechanical Durability5000000 cycles
Operating Torque0.05 N.m NO changing electrical state
Positive Openingwithout
Product Or Component Typecomplete body/contact assembly and light block
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Signalling Typesteady
Supply Voltage250 V
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1808008_V2-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)69.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6.0647277714
- Environmental Disclosure
- ENVPEP1808008_V2-EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level21 %
Mercury FreeYes
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1808008_V2-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/contact assembly and light block
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000204
ETIM 9EC000204
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
