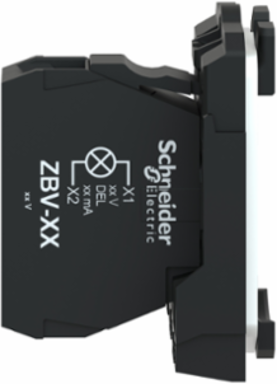

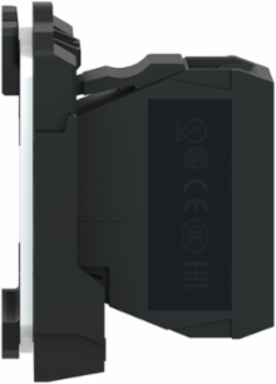

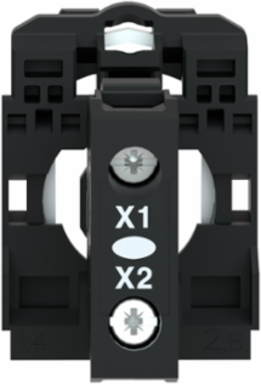

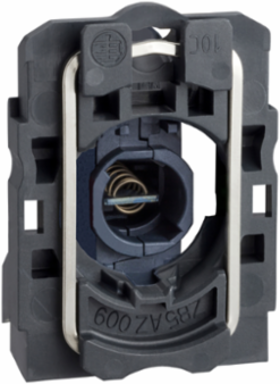

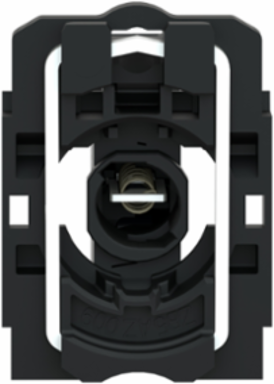

Schneider Electric ZB5AV6 Harmony XB5 Light Block, BA9s Bulb Base, IP20 Protection, 32 mm Depth
- MPN: ZB5AV6
- PPN: SCH-ZB5AV6
CAD
$36.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Light Block Supply
- direct <2.4 W
- Fixing Collar Material
- plastic
- Sale Per Indivisible Quantity
- 1
- Bulb Base
- BA 9s
Light Sourcebulb not included
Product Or Component Typecomplete body/light block assembly
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device Short NameZB5
Complementary
- Terminals Description Iso N°1
- (X1-X2)PL
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Device Presentation
- basic sub-assemblies
- Signalling Type
- steady
- Cad Overall Width
- 30 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Net Weight0.022 kg
Cad Overall Height42 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Cad Overall Depth32 mm
[Us] Rated Supply Voltage<= 250 V
Environment
- Product Certifications
- UL listed || CSA || DNV || BV || GL || LROS (Lloyds register of shipping)
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class II IEC 60536
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
